Overview

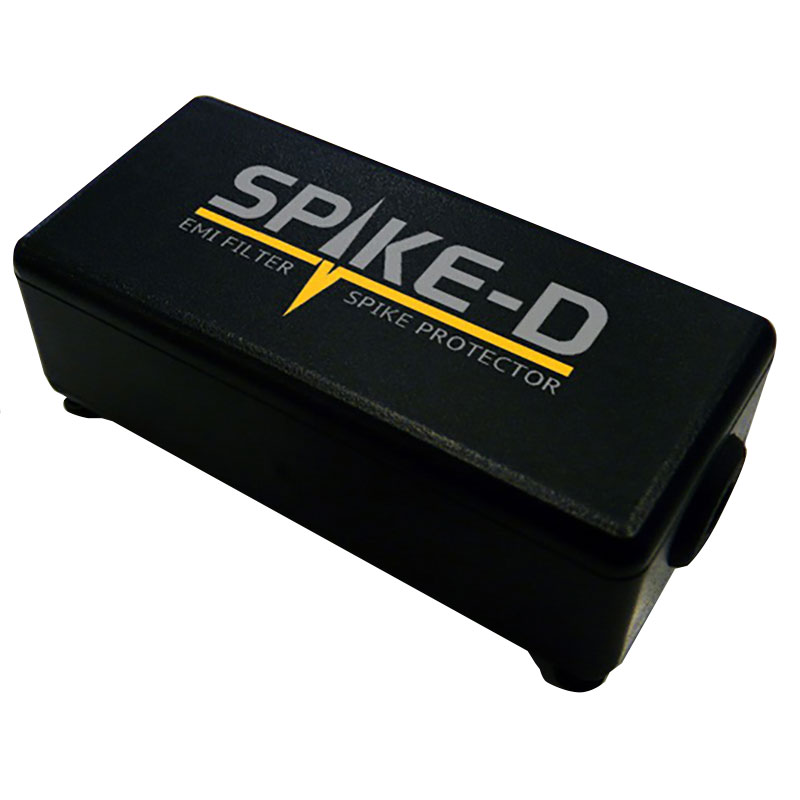

2-in-1 EMI/OverVoltage Spike Module Spike-D can be use with lights: Ultra Galactica, Ultra Embedded Galactica, Ultra Aurora, Ultra Embedded Aurora, LSA, Andromeda PowerBurst, PowerBurst Plues, Gliderburst PosiStrobe CP Aurora, PosiStrobe CP Galactica, PosiStrobe XP, MiniMax RedBaron XP Aurora, RedBaron XP Galactica, RedBaron Maxi, RedBaron Mini, RedBaron MaxiMini (NOT HISL!!) R2D2 AveoMaxx Vega TL, Vega TLR, Vega Helo All EyeBeam series For Experimental Aircraft

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Unit characteristics: 2 channels Overvoltage Protection
Dimensions: 80,4 mm x 31,4 mm x 23 mm / 3.16" x 1.24" x 0.9"
Voltage range: 9..36VDC
Voltage protection:

• Transcend voltage: 150V at 2second max, both polarities;
• Under-voltage protection lockout: 7.4V;
• Under-voltage protection relies: 8.2V;
• Over-voltage protection lockout: 44.3V;
• Over-voltage protection relies: 41.6V;
• Reverse connection protection: 80V, not less;

Over current protection: 5A, not less

Performance:

• Filtration DO 160G, chapter 21, Emission of Radio Frequency Energy: More than 10dB;

• Output current, not less than:
       Steady: 4A per channel;
       Pulse 1/3: 5A per channel;

• Output power, not less than:
       Steady: 4A at 9..36VDC per channel;
       Pulse 1/3: 5A at 9..36VDC per channel;
• Input power, not more than:
       Steady: 4A at 9..36VDC per channel;
       Pulse 1/3: 5A at 9..36VDC per channel;

Warm up time: 0.5sec
Ambient temperature: - 40°C..+85°C
Overheat protection: +85°C

Wiring:

a. wire type: FEP High Temperature teflon wire, 20 AWG
b. wire length: min. 10 inch (280mm)

Wire color code:
1. Input, power supply side:

a. 20AWG Green +9…36V, first channel input
b. 20AWG Orange +9...36V, second channel input
c. 20AWG Black Common return VRTN to power supply for first and second channel

2. Output, light side:

a. 20AWG Red +9…36V, first channel output
b. 20AWG Yellow +9…36V, second channel output
c. 20AWG Black GND light

Please, do not connect black wires from input and output together.
