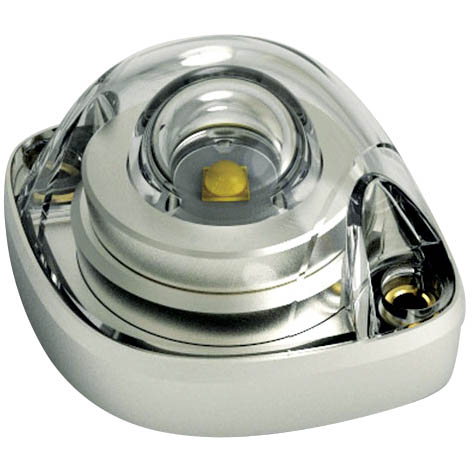

Aveo Minimax Ariel Red Led

$475.00/Each
Part# 11-17569
MFR Model# AVE-PSASR-D01

Overview

Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel is a compact powerhouse of hemispheric light. It is also a great anticollision light to use on the upper and lower fuselage in combination with AveoFlash wing lights due to its incredibly small footprint.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 53 g / 1.87 oz
  • Operating Voltage Range: 9 – 36 V DC
  • Power – position: 2.6 W
  • Current – strobe (@12V): 2.0 A
  • Current – steeady (@12V): 0.22 A
  • Output Power:
  • – strobe (Watts): 24 W
  • - Steady: 2.6 W
  • Flash Rate: 100/50 + 50/50 + 50/950(mS)
  • Ambient temperature: from -40°C to +75°C / from -40°F to +167°F
  • Overheat protection: Yes, +85°C
  • Transient voltage: 60V
  • Under-voltage lockout: 9V, not more
  • Over Voltage Lockout: 36V, not less
  • Waterproof / Vibration-proof / Shock-proof / Dust-proof: YES
  • Wiring: Teflon insulation, 500V / Wire length from base of unit 254mm (10") min.

Drawing
