Overview

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

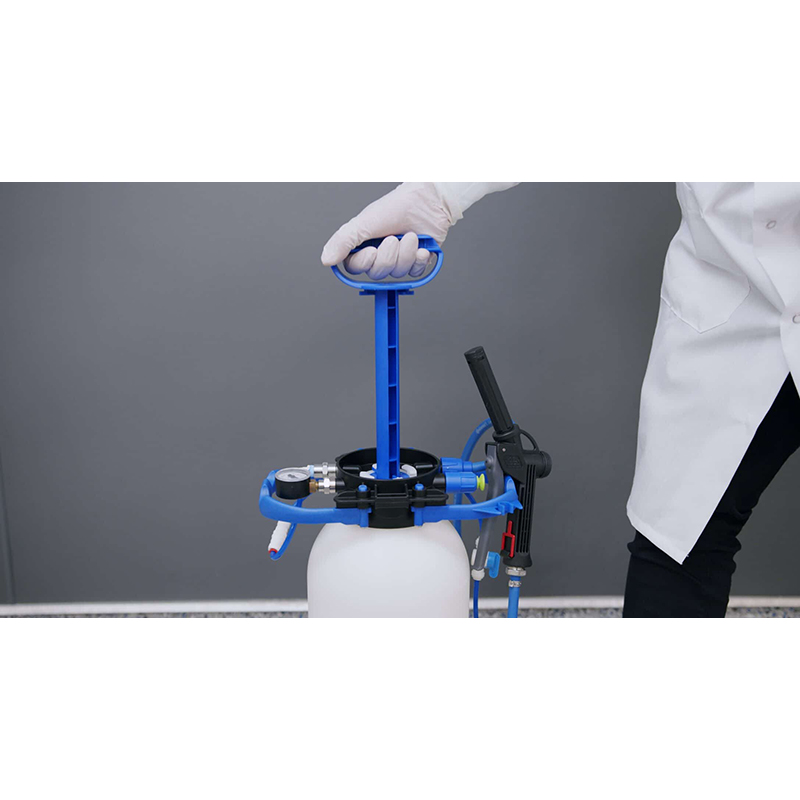

• Dual operation with manual pump and connection for air supply for flexibility in applications
• Connect to an air source to pressurize the unit, then disconnect and move the unit to the area to be cleaned
• Produces thick, high quality foam
• Lightweight, durable, and chemical-resistant discharge hose
• Pressure regulator and pressure relief valve for safety
• Viton seals for chemical compatibility
• Natural color tank for easy visibility of product levels

Specifications

• Power Type: Compressed Air or Manual
• Chemical pickup type: draws from pre-mixed solution
• Number of products unit can draw from: one product
• Capacity: 2.6 gallons (10 liters)
• Discharge line length/diameter: 6 ft. (1.8 m) hose, with 1/4 in. (6.4 mm) inside diameter
• Discharge wand/tip type: Polypropylene trigger handle with 65˚ fan tip
• Output Distance: 5-6 ft. (1.5-1.8 m)
• Output Volume: 3 gal/min (11.4 l/min)
• Flow Rate: 0.5 gal/min (1.9 l/min)
• Pump Seals: Viton
• *Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

Requirements

• compressed air requirements:
• 40 psi (3 bar) with 2-5 cfm (57-142 l/min)
• liquid temperature range:
• 40-100˚F (4.4-37˚C)
• chemical compatibility:
• Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

Documents

• Datasheet
• User Manual

In The Box

• complete unit
• user manual
