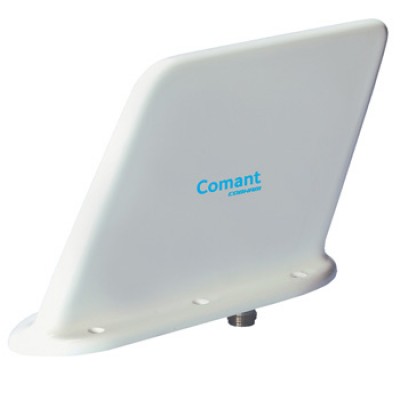

Frequency • 400-960 MHz UHF blade antenna design for high performance aircraft over the full range of 400-960 MHz. Low profile, low drag, light weight antenna is packaged in a molded body and metal mouting base to ensure stable performance in tough environmental conditions. Features vertically polarized/omni-directional pattern, extremely wide band/high efficiency electrical performance. DC grounding for lightning protection, 6 hole mounting. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL CI 285UHF ANTENNA | |
Electrical | |
Frequency | 400-960 MHz |
VSWR | 2.0:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent of 1/4 Stub |
Impedance | 50 Ohms |
Power RF | 100 Watts |
Mechanical | |
Weight | 0.75lb. Maximum |
Height | 5.20 in. Maximum |
Material | Lexan |
Finish | Polyurethane Enamel |
Connector | N (Female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 55,000 ft. |
Air Speed | 600 Knots TAS at 25,000 ft. |
