Frequency • 108-120 MHz & 325-340 MHz
|
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |

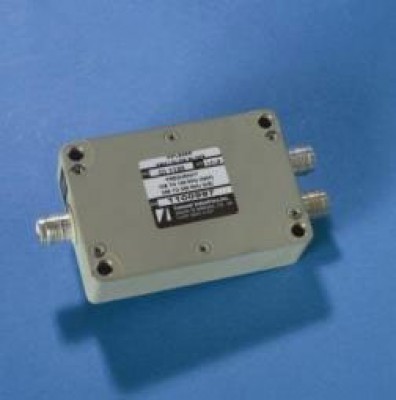

MODEL CI 1120 DIPLEXER/ SINGLE VOR/ SINGLE GS | |
Electrical | |
Frequency | 108-120 and 325-340 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 40dB |
Impedance RF | 50 Ohms |
Mechanial | |
Weight | 0.44 lb. Maximum |
Height | 0.812 in. Maximum |
Material | Die Cast Iron |
Finish | Flat Grey Epoxy Paint |
Connector | TNC (Female) |
Environmental | |
Internal Mount | |
Federal Specifications | |
MIL Standards | MIL-E-5400 |
MIL-STD-810B (Vibration) | |
MIL-B-5087 | |
MIL-C-39012 (Connector) |
