Comant CI-1125 TNC Diplexer Single

$339.00/Each
Quantity
Add to Wishlist
Part# 11-19389
MFR Model# CI-1125-TNC

Overview

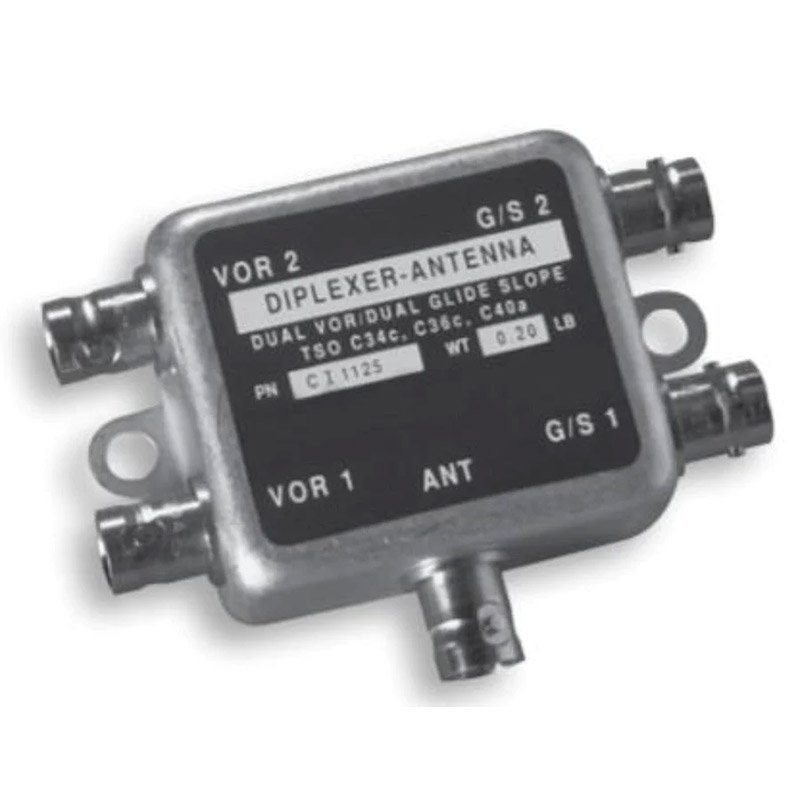

Comant 2 through hole diplexer with BNC ports. Splits a single VOR/LOC and GS antenna signal into two VOR/LOC and two GS signal output. Designed for avionics units that require separate NAV signal inputs. Suitable for internal aircraft mounting

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical
  • Frequency: 108-118 MHz & 329-335 MHz
  • VSWR: 1.5:1 Max

  • Isolation
  • 20 dB between VOR/GS
  • 18 dB between VOR Ports
  • 18 dB between GS Ports
  • Insertion Loss: 3.6 dB Max
  • Impedance: 50 Ohms
  • Mechanical

  • Weight: 0.20 lb
  • Height: 0.75 in
  • Material: Aluminum
  • Finish: Aluminum
  • Connector: BNC or TNC

  • Environmental
  • N/A: Internal Mounting
  • Federal Specifications: CI 1125
  • FAA TSO C34c, C36c, C40a

Applications

  • Internal Aircraft Mounting
  • Always consult your installation shop for best application
