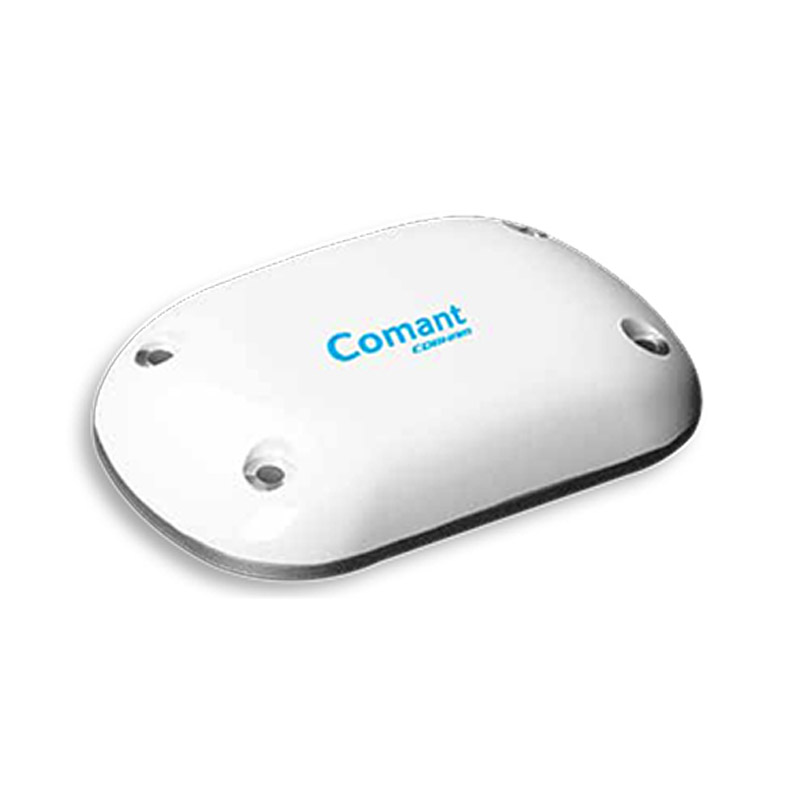

Comant CI-401-460 Comdat Gps Non-Waas / Xm Rectangle

0 Reviews 0 Answered Questions
$1037.00/Each
Quantity
Add to Wishlist
Part# 11-19428
MFR Model# CI-401-460

Overview

Note: GPS portion not compatible with most GPS hand held receiver systems

Comant’s ComDat® four through hole rectangle style mount (ARINC 743A Footprint) GPS non-WAAS / XM Weather & Radio antenna with dual TNC ports. This antenna covers both GPS / XM frequencies. GPS C144 certified for class 1 LNAV approaches (lateral navigation only). Designed to be used with 27 dB gain GPS panel mount systems. Suitable for top mounting with both light and heavy fixed wing single engine / multi-engine and business jet aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Specifications
  • Comant: CI 401-460
  • ComDat® GPS Non-WAAS Navigation / XM Weather & Radio
  • GPS Preamplifier Characteristics
  • Frequency: 1575.42 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Impedance: 50 Ohms
  • Gain @ 1575.42 MHz: 27.0-30.5 dB
  • DC Voltage: 4-24 Volts
  • DC Current Min/Max: 25mA Min / 40mA Max
  • Noise Figure: 3.8 dB
  • Selectivity: -35 dB Min @ Satcom

  • Frequency
  • XM Weather Data Specification
  • Frequency: 2332.5-2345.0 MHz
  • VSWR: 1.5:1 Max
  • Polarization: LHCP
  • Radiation Pattern: Hemispherical
  • Impedance: 50 Ohms
  • Gain: 26-30 dB
  • DC Voltage: 4 V Min / 4.7 Typical / 5.5 V Max
  • DC Current Min/Max: 25mA Min / 45 mA Typ / 55 mA Max
  • Noise Figure: 2.7 dB Max

  • Mechanical
  • Weight: 6.5 oz
  • Finish: Glossy White
  • Connector: GPS - TNC / XM - TNC

  • Environmental
  • RTCA: Env. DO-160D
  • Federal Specifications
  • TSO C144

Applications

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jet
  • Always consult your installation shop
  • for best application.
