Bendix King KI-209 VOR/Loc/Glideslope Indicator

$7424.00/Each
Quantity
Add to Wishlist
Part# 11-00878
MFR Model# KI0209-01

Overview

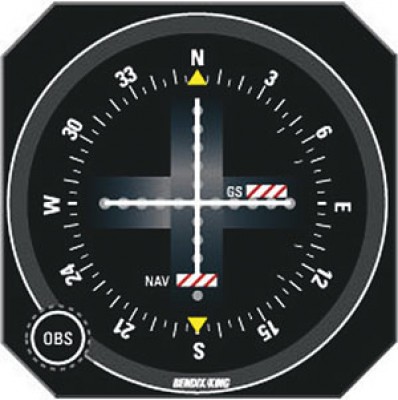

The KI 209 VOR/LOC/Glideslope Indicator with built-in VOR/LOC converter has pivoted needle action and a plastic lens. Requires input from external glideslope receiver. Dimensions: 3.25" X 3.25" X 8.00"

Compatible with the KX155 transceiver, and includes GPS interface capability.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 1.20 lbs. (0.54 kg)
  • Width: 3.25 in. (8.26 cm)
  • Power Required: 14/28 VDC @ 60 mA max.
  • Height: 3.25 in. (8.26 cm)
  • Length: 8.00 in. (20.32 cm)
  • Lighting Power: 14/28 VDC
  • OBS Resolver: 30 Hz

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: We want to buy some VOR indicators; can you please tell us if the marker beacon can be displayed on this indicator?

No, marker beacon indications are typically shown on a audio panel and not the CDI.

Q: Does the KI-209 Indicator come with the installation kit?

The KI-209 Indicator does come with the installation kit.

Q: Is the Bendix King KI 209 or KI 209A compatible with SL 30 nav/comm?

No. This part is not compatible with the SL 30. We recommend the MD200-706 which can be found under part # 10-06014.

Q: Is the KI209 compatible with the Garmin GNC255 Nav/Comm?

Yes, the KI 209 is compatible with the GNC 255 Nav/Comm.

Q: Is the KI209 Compatible with the KX125 NavCom?

Per the manufacturer, yes, it will interface with the KI 209

Q: Is this component TSO ? -KI-209

Yes, this unit is FAA Approved.

Q: Is the KI 209 compatible with the nav radio/with KX175B?

Per the manual for the KI 209, it is compatible with the KX 175B when the KN73 is used.
