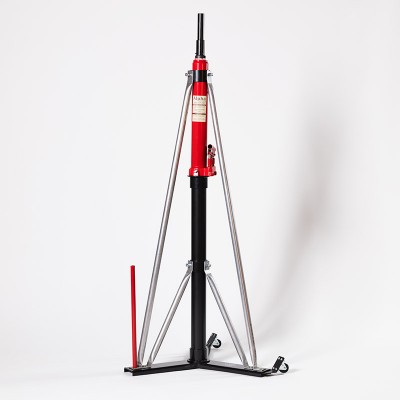

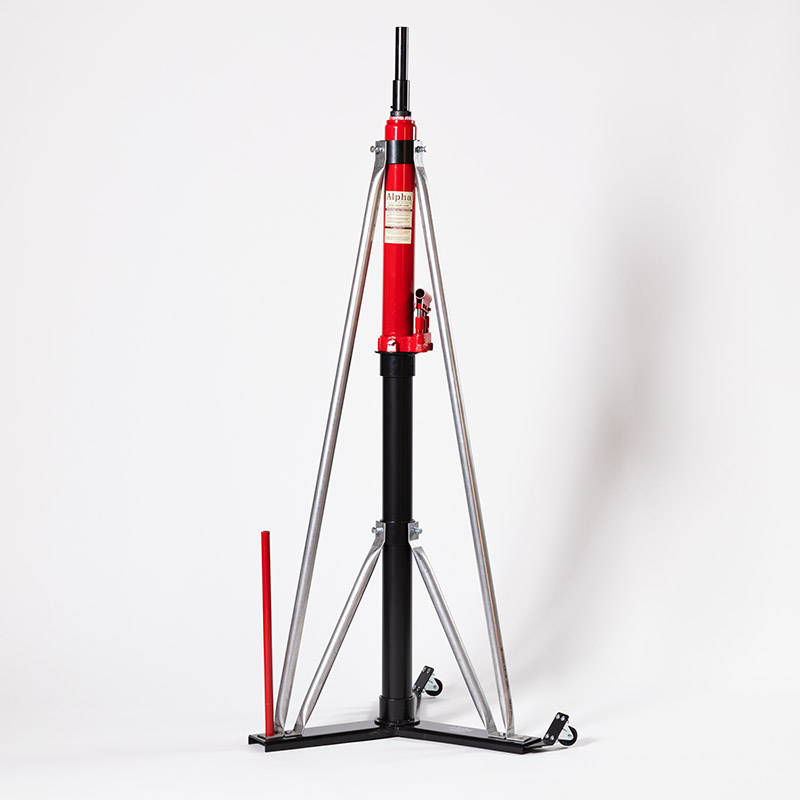

Hydraulic Aircraft Jack Model 868W

$829.00/Each
Quantity
Add to Wishlist
Part# 12-01727
MFR Model# 868W 26"-87"HGT

Overview

Model #868W
8 Ton Universal Jack

The ULTIMATE in versatile heavy duty general aviation jacks. When the need is for a versatile jack that can accommodate the needs of a busy FBO, the Model #868W is the choice. The Model #868W combines all the strength and versatility of Model #838W with the necessary fittings to accommodate High Wing Cessna Aircraft such as 172RG, 177RG, 210 and 337. Shipped with adapters, our unique design allows the Model #868W to easily convert from a 26" low wing jack through the 32" and 38" levels to a 68" high wing jack, avoiding the high cost of having to purchase model specific jacks.

Height Range: 26"-43", 32"-49", 38"-55", 68-87"
Ram Capacity: 16,000 lbs

For Cessna 182RG, please see model 868HLW.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Double Action 8 Ton(16,000 Lbs.) Hydraulic Cylinder
  • Highly Versatile- Shipped With Adapters for 26", 32", 38", & 68" Heights
  • Double Braced at the 68" Height for Stability
  • Jack Point Centering Cap to Assure the Aircraft Stays on the Jack
  • Locking Safety Collar Secures the Load
  • Rugged Heavy Gauge Steel Construction
  • Stable Three Leg Design Clears Gear Doors
  • Tilt & Go Wheels for Greater Mobility
  • Convenient Handle Storage

Application Chart

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the weights and dimensions of the packages this jack model 868W (part # 12-01727) will be sent in? What does special order mean?

Cylinder kit: 25x5x5 @ 36 lb
Jack base: 29x25x2 @ 15 lb
Riser/wheel kit: 12x12x6 @ 10 lb
Long riser / braces: 60x6x6

Special order means that these are not stocked and are ordered and drop-shipped from the manufacturer once our customer places the order.

Q: Is kit # 868W a kit of two jacks or one?

This is a single jack.
