Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 582UL /Rotax 582 Ul 99/17 Engine Crankcase | Rotary Valve Drive | Water Pump
Main Image

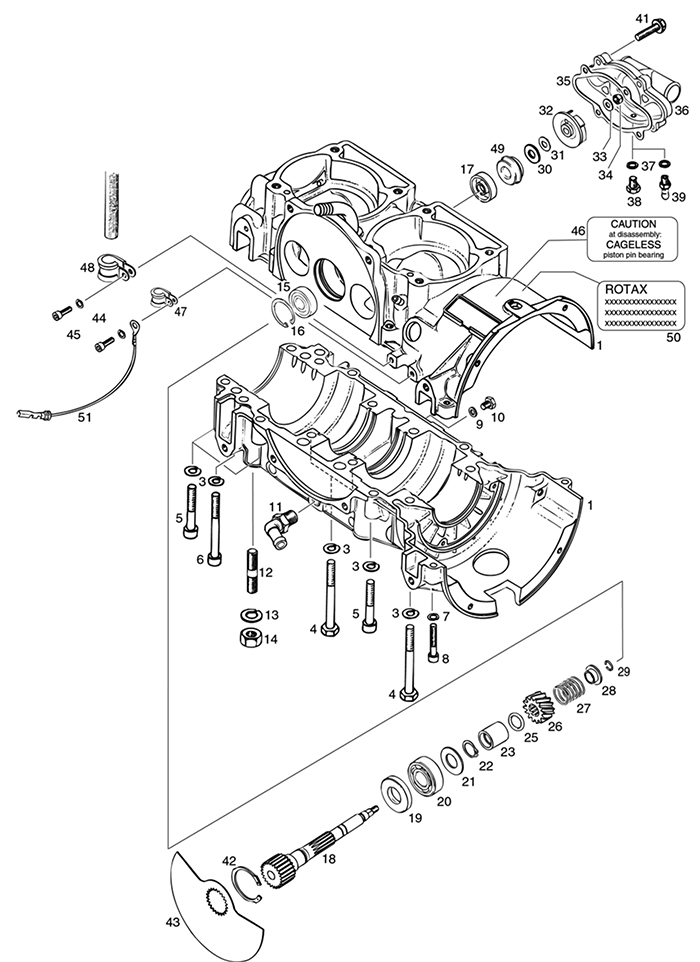

Rotax 582 Ul 99/17 Engine Crankcase | Rotary Valve Drive | Water Pump

1 Review 0 Answered Questions
From $0.35 to $32.85
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req Mod. 99 Qty Req Mod. 17 Part Number Price Buy
5841-562ALLEN SCREW M8x45 66
15-10139
$5.35
Quantity
8241-811ALLEN SCREW M6X35 DIN 91222
15-00187
$1.22
Quantity
10240-772HEX. SCREW M6x10 11
15-09740
$1.57
Quantity
15932-797B. BEARING 6201-Z, 12-32-1011
15-03074
$18.10
Quantity
16245-420RETAINING RING 32X1,211
15-00235
$1.27
Quantity
19930-580OIL SEAL 20X40X711
15-03040
$16.89
Quantity
21227-439SHIM 17,2/32,5/1,511
15-00043
$2.75
Quantity
22845-450RETAINING RING 17x1 11
15-01309
$0.75
Quantity
23847-282SPACER11
15-01324
$9.67
Quantity
24927-440SHIM 15,1/22,5/0,5xx
15-02993
$1.20
Quantity
25831-500O-RING 14-3 11
15-00919
$3.02
Quantity
28827-430SPRING HOLDING CUP11
15-00842
$7.80
Quantity
30227-945THRUST WASHER 8,1/15/0,511
15-00052
$1.20
Quantity
31227-155FRICTION WASHER11
15-00041
$6.45
Quantity
38841-580HEX. SCREW M6X821
15-01194
$0.35
Quantity
42945-880RETAINING RING 40X1,7511
15-03377
$1.99
Quantity
44945-750LOCK WASHER A522
07-00435
$1.86
Quantity
48851-113CLUMP 18/M51
15-01510
$7.68
Quantity
49650-370ROTARY SEAL1
15-00674
$32.85
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Rotary valve for configuration with rotary seal
  • b   The circlip must be positioned at the inner groove only
  • c   Crankcase including rotary valve drive, configuration with rotary seal


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
