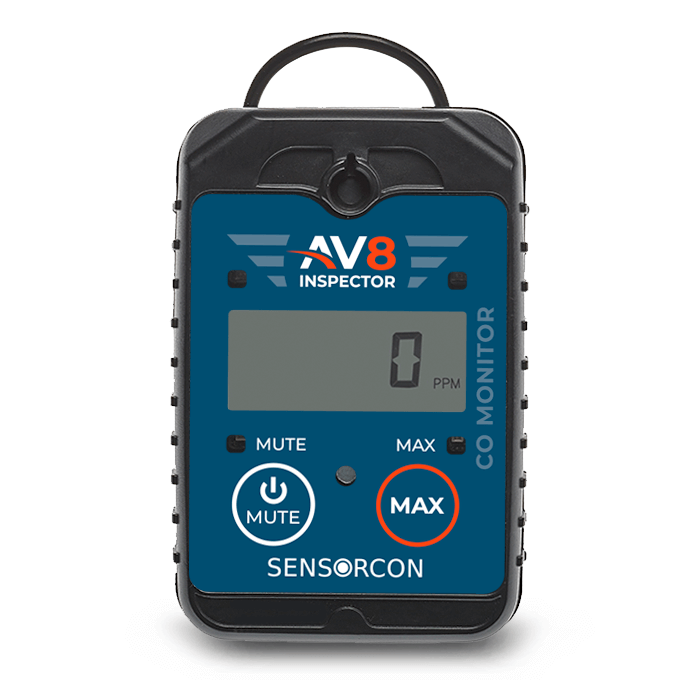

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor

15 Reviews 7 Answered Questions
Now $164.00/Each
Was $185.75
Save 11%
Quantity
Add to Wishlist
Part# 10-07327
MFR Model# AV8-CO-01

Overview

In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents. The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations, before it becomes a problem

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 2 Year Warranty
  • Water Resistant
  • Shock Proof
  • Pre Set Low Alarm (35 ppm)
  • Pre Set High Alarm (200 ppm)
  • Visual Alarm
  • Audio Alarm

Specifications

  • Measuring Range: 0-500ppm
  • Display Range: 0-1999ppm
  • Resolution: 1ppm
  • Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
  • Response time: (T90): < 20 seconds
  • Size: ~3.2” x 2.2” x 0.9”
  • Unit Weight: 4 ounces
  • Battery Life: > 2 yrs (depending on alarm conditions)
  • Battery Type: Panasonic CR123A
  • Alarm setpoints: 35 ppm low, 200 ppm high
  • Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and
  • Vibrate Mode (vibrate in AV8 Inspector Pro model only)
  • Temperature Range : -4 to +122 °F (-20 to +50 °C)
  • Humidity Range: 20%-90% RH continuous (0-99% intermittent)
  • Sensor Type: electrochemical

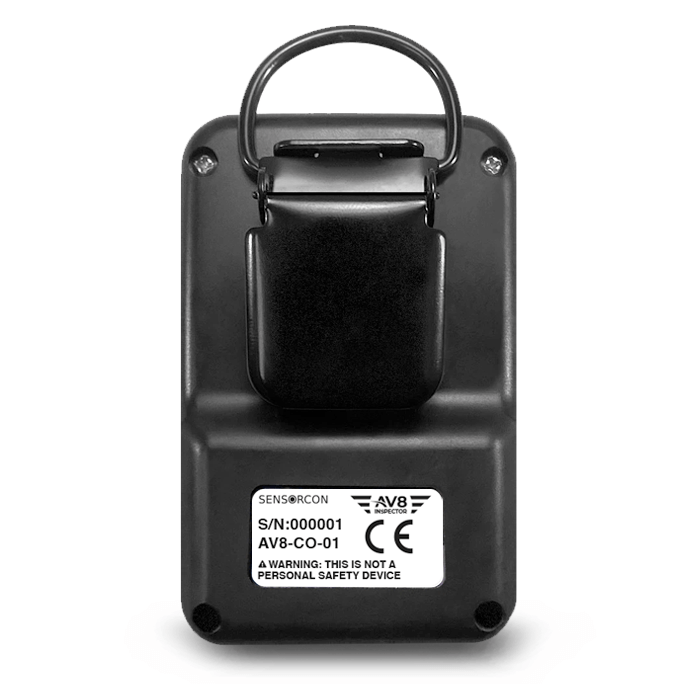

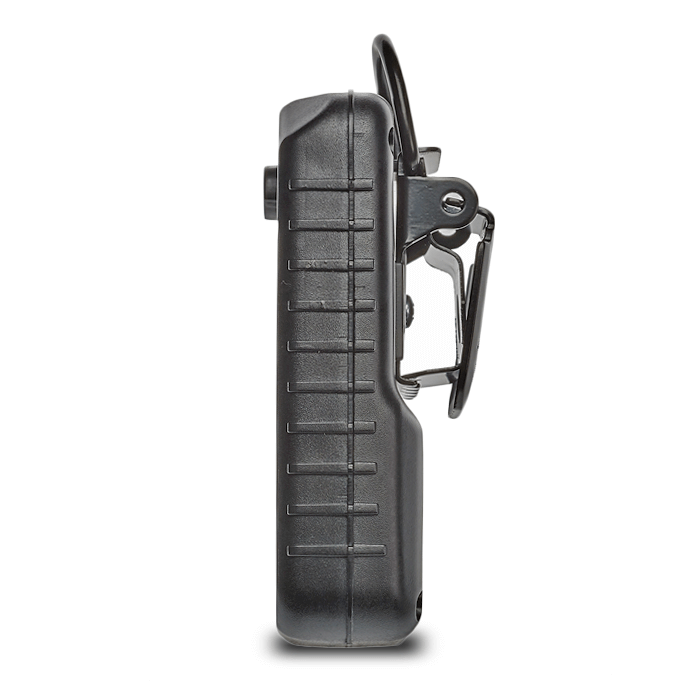

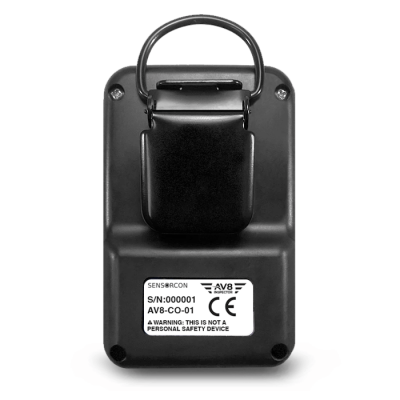

  • Steel alligator clip with lanyard loop

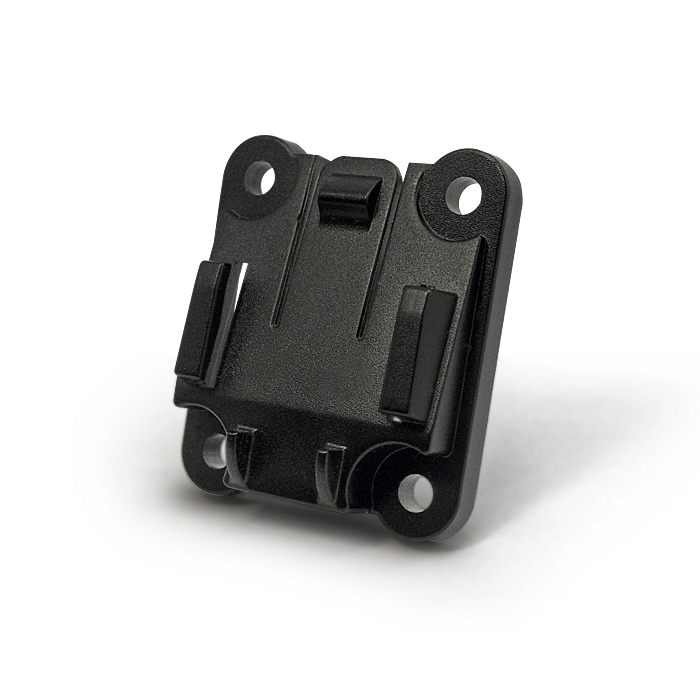

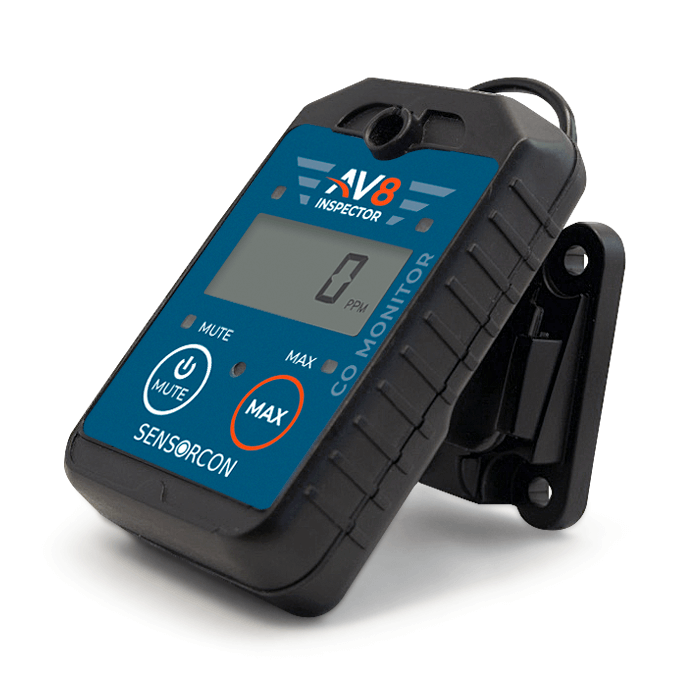

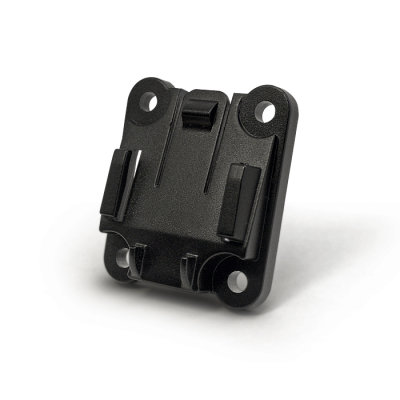

  • Removable mount

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

This is the second one I have bought. I have one in my Skyhawk that made me go looking deep for a crack (not visible but found on a pressure dunk test) in my muffler. Dont leave home without it.

Micren D Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
October 30, 2024

Works great, reacts quickly - when taxiing with the windows down it responds within seconds when steering into or out of the wind. The mount is great for screwing down to an instrument blanking plate.

Brooks M Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
September 10, 2024

Works great

Lloyd C Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
April 4, 2024

The sensor seems to work good. No CO detected in two test flights. Mounted to panel with velcro. Removed the spring clamp.

Steven D Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
March 13, 2024

This is a great monitor. Its reliable with a quality build. This is my second unit because my first unit stayed in the airplane I sold last year.

Leland B Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
December 1, 2023

Received promptly.

Roger J Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
June 2, 2023

This is the second one I ordered and we have never had an alarm yet because the readings are well within its lower limit.

Peter J Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
December 13, 2022

Easy to use and works well. What more could you ask of this product?

Donald W Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
October 16, 2022

Steve B Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
July 19, 2022

Very nice product, compact, easy to use, light weight and complements my instrument panel nicely.

Dave S Verified Purchase

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
April 14, 2022

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the battery field replacable? The manual provides no instructions or information on battery replacement.

Yes the batteries are replaceable and you can buy anywhere. Lithium CR123A.

Q: What is the difference between the standard AV8 Inspector and the PRO?

The Pro version adds Vibrating Alarm, Alarm Adjust, and 24 Hour TWA. Vibrating alarm adds another layer of notice capability by vibrating the unit when the alarm is triggered. Alarm adjust allows you to adjust the high and low values for alarm trigger (they are preset for the standard model). Finally, 24 hour TWA is Time Weighted Average which displays the maximum 8 hour average in the last 24 hours.

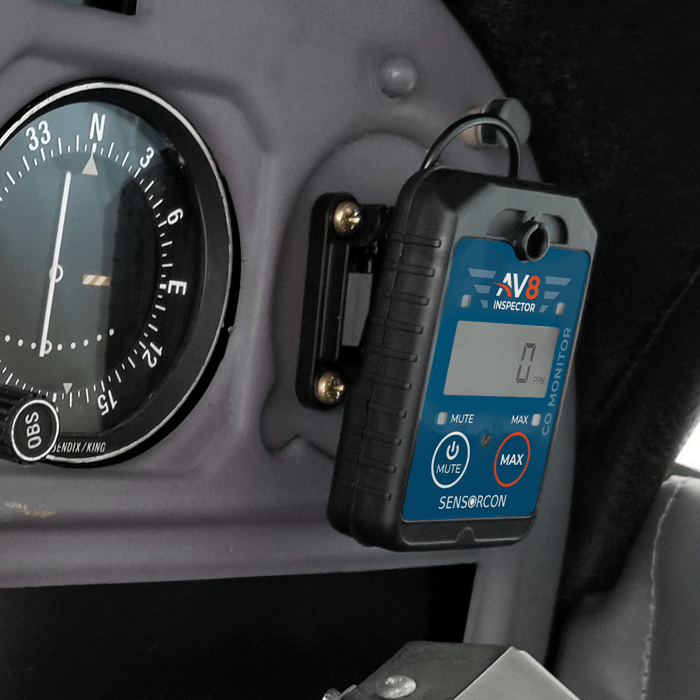

Q: How does the bracket for the Sensorcon AV8 mount to the panel?

It is attached with 4 screws or bolts, they are not included since mounting locations and applications vary.

Q: Is the battery replaceable?

Yes the batteries are replaceable and you can buy anywhere. Lithium CR123A.

Q: Since the CR batteries are replaceable, how long will this product continue to function effectively?

Per AV8: "The unit should work for two years before the battery needs to be replaced, although this would also be determined by how often the alarm goes off."

Q: Is the Sensorcon AV8 unit always on? Or do you have to turn it off and on?

No, this has an on/off switch.

Q: The battery is good for two years. But is the detector good for longer use? I see some are only good for three years before it's no longer to be used.

Yes, this is good for more than 2 years. The warranty is also good for 2 years. They offer out of warranty services as well.
