RV-A Series Aircraft Towbar M-340-026

$154.00/Each
Quantity
Add to Wishlist
Part# 13-18476
MFR Model# M540-026

Overview

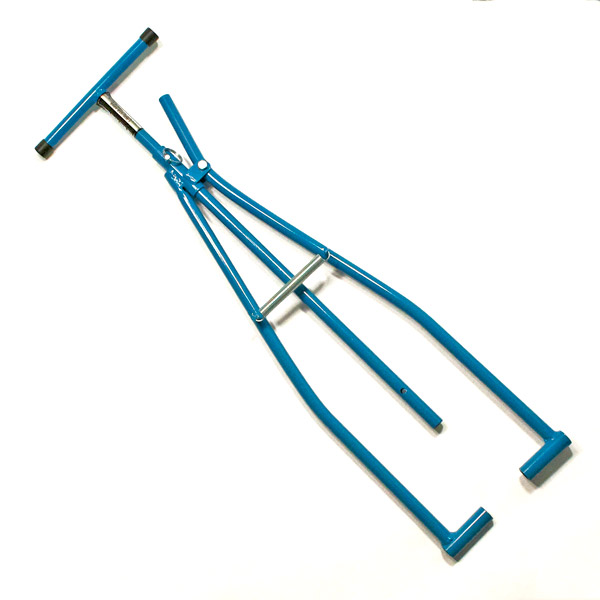

RV-A Series Aircraft Tow bar. Two piece spring loaded design.

Eligibility of Vans Aircraft: RV-6A, 7A, 8A, 9A

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Eligibility Chart

  • Vans Aircraft: 7A, 8A, 9A

Specifications

  • Collapsible Length: 26"
  • Overall Length: 43"

Reviews

Works great on my sky ranger

James R Verified Purchase

Towbar RV-A Series Aircraft M-340-026

January 13, 2024

Worked exactly as described. Arrived quickly.

Duane Z Verified Purchase

Towbar RV-A Series Aircraft M-340-026

January 3, 2024

Arrived on time and works well.

Jose C Verified Purchase

Towbar RV-A Series Aircraft M-340-026

March 17, 2023

My Cavalier 102.5 homebuilt has a one off swivel nose gear. I was having difficulty finding a towbar that would fit properly. This one does the trick and seems robust but light weight.

Claude B Verified Purchase

Towbar RV-A Series Aircraft M-340-026

October 13, 2022

Works great.

Victor H Verified Purchase

Towbar RV-A Series Aircraft M-340-026

August 19, 2022

Works nicely, lightweight but strong enough to do the job.

Mike P Verified Purchase

Towbar RV-A Series Aircraft M-340-026

June 24, 2022

Towbar worked well on my RV7A. Light weight but adequate strength for purpose. Opened up front wheel pant holes to 1 inch dia. Well worth the price.

Russell G
July 25, 2020

This tow bar DOES work for a RV6A. Seems well made, does what it is supposed to.

Dale M
October 4, 2019

Works perfect on my F1 Rocket tail wheel with the towbar axle.

John
December 1, 2018

Does what its supposed to, dirt simple

Danhagan
September 11, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Would this work on a Vans tailwheel AC?

No, this will only work with Vans 7A, 8A, 9A.

Q: How much does tow bar weigh?

Approx 4 lbs.

Q: Will this towbar work in an RV-9A?

Yes, this will work on a RV-9A.

Q: Will it work RV14A?

No. It will not work with the RA14A.

Q: Will this work on an RV-12?

Per the manufacturer: No, unfortunately it will not.

Q: What material is the tow bar made of?

This is a steel tow bar.

Q: Will this tow bar work on a RV 6 A?

Yes. It will. The RV-7A, 8A, 9A, and 6A all use the exact same nose fork and wheel fairing.

Q: What is the ID of the tube that connects to the nosewheel lug?

The ID of the tube is .647".

Q: What is the smallest distance the two lugs come together?

The closest the tubes come together is 2-3/4".

Q: What is the Outer Diameter of the tube that connects into the nosewheel lug?

O.D: 13/16 | I.D: 11/16
