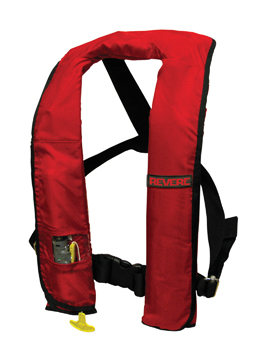

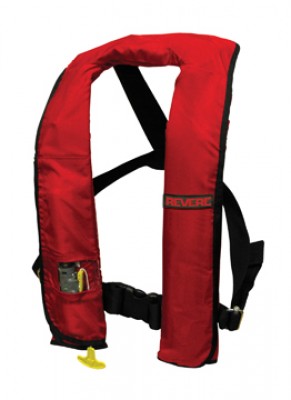

Revere Comfortmax ™ Inflatable PFD - Red Type III
MFR Model# 45-61018-101R
FREE Shipping
Overview
|
ComfortMax™ Inflatable PFDs offer manual and automatic inflation systems, combining comfort with the convenience of instant CO2 inflation technology. Revere’s ComfortMax™ series of inflatable life vests provide all the comfort and safety you need while looking smart wearing it. It’s so comfortable fitting, you’ll want to wear it all the time! |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- USCG approved for persons at least 16 years of age weighing 80 lbs. and above with a chest size between 30” and 52”
- Available as Automatic (with Manual Backup) or Manual
- Dual waist belt stainless steel adjusters. Provides for easy adjustment with both hands and a more custom fit
- Exterior inflation system access flap. Allows for clear, direct access to the CO2 cylinder for rearming. CO2 cylinder can be replaced without opening and unfolding the entire PFD
- Waist strap and back strap attachment points fully connected and reinforced from inside for added strength
- Heavy duty 420 denier nylon packcloth outer cover
- Twin 2” wide back straps for comfort and security
- Includes USCG compliant whistle and SOLAS Grade retro-reflective tape panels on inflatable bladder
- Comfortable neck. The neck area has no Velcro or edge binding to cause chafing or abrasion for all-day comfort
Specifications
- Model: 45-61018-101R
- Buoyancy: 38 lbs. (169 Newtons)
- Unit Dimensions: 20"x12"x3"
- Approx. Weight: 3 lbs.
Documents
Reviews
Very comfortable, easy to use!
Verified Purchase
Revere Comfort Max Pfd Red
Great product!
Verified Purchase
Revere Comfort Max Pfd Red
Verified Purchase
Revere Comfort Max Pfd Red
Very low profile unit with low weight.
Verified Purchase
Revere Comfort Max Pfd Red
Small size, light weight. Perfect for my Bahamas trips
Verified Purchase
Revere Comfort Max Pfd Red
I havent used the vest and hope that I never will need to. I live in Southern California and frequently fly over the Pacific to Catalina or further up to the central coast. When over the water, we wear the vests as a matter of practice. The product seems well-made is comfortable, light and is ideal for a general aviation aircraft.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The only difference is the color. 13-04373 is red and 13-04372 is navy blue.
This flotation device uses CO2. It will inflate automatically once the rip cord is pulled.
This is a manual inflation system.
The jackets operate as a single chamber as are all USCG approved jackets, it is only when the PFD is SOLAS approved it has 2 chambers. There is no set frequency inspection period for the jackets as they can be serviced and tested by the individual.
This product is not FAA approved but it is USCG approved. It does not require it to be recertified or serviced but it is recommended to take a look on the back of the instruction manual on how to maintain this unit.
The 13-04373 is a manual inflated unit. It will not inflate until the cord is pulled.
Yes, they are yellow when inflated.
This is not FAA approved. It is not required to be recertified or serviced but recommended to be maintained by using the reference in the back of the instruction manual.
But the best rule of thumb to follow on the manual vests is….
*take the vest out at the beginning of each season
*inspect all the straps and bindings to make sure they have not been damaged or are fraying
*if there are any compromises to the materials and/or the straps the vest should be replaced
*remove the Co2 – inspect the seal -it should be intact.
*reinstall in the mechanism..you should see the cylinder seal indicator go from red to green.
* if you do not see green then the cylinder should be replaced.
*if the vest and Co2 passes visual inspection, inflate the yellow bladder with the
oral valve.
*allow to sit overnight – the bladder should stay inflated and NOT become soft
*if the bladder loses air- the vest should be replaced
*if the bladder does not lose air, deflate via the oral valve (depress the spring at top of tube) repack via the instructions
You are ready to go.
This is located in the front on the bottom left next to the whistle. It is an orange tube.
