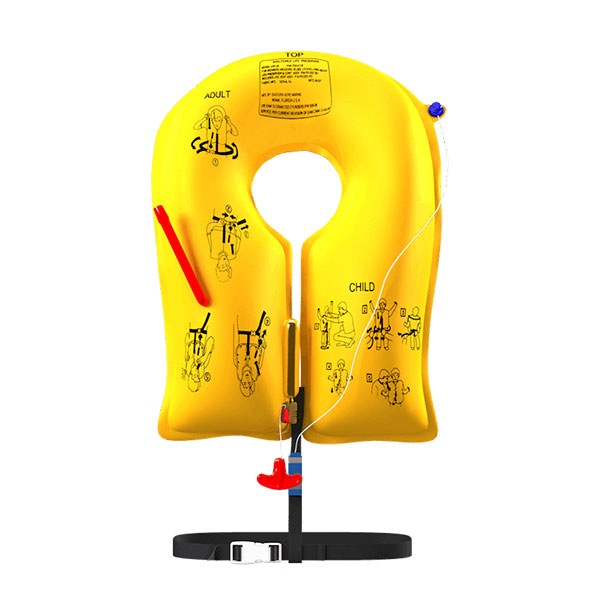

EAM Uxf-35 Life Jacket 10 Yr Yellow Passenger
MFR Model# P01202-201
FREE Shipping
Overview
| This single cell vest is the lightest weight aviation vest in the world, weighing only .9 lbs (410 grams). 10 year frequency of inspection. TSO-C13f Approved. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Inflatable Cell
- Inflator
- Harness
- Harness Pull Tab
- CO2 Inflation System
- Optional Whistle
- Oral Inflation System
- Light
- Light Battery
Specifications
- Inflated Buoyancy: 35 lbs. (150 Newtons) minimum
- Inflated Volume:970 cu. in. (16 liters) minimum
- Approvals: US FAA TSO-C13f approved; United Kingdom CAA Approval No. AR01504; Europe EASA-ETSO-C13f; Italian ENAC Approval.
- Category of Preserver: Adult/Child Combination
- Weight of Wearer: 35 lbs. (15.91kg) and above
- Inflatable Buoyancy Cell: Single Cell
- Material: Urethane Coated Nylon, Flame Retardant
- Construction: RF Heat Sealed Seams
- Inflation System: Manual CO2 Inflator and an Oral Inflation Tube.
- Color: Passenger Yellow
- Temperature: Functional Range: -40 to 140 oF (-40 to 60 oC); Storage Range: 0 to 120 oF (-17.8 to 48.9 oC)
- Humidity: Functional Range: Up to 95% Relative Humidity; Storage Range: Up to 70% Relative Humidity
- Altitude: -2000 to 45,000 feet above sea level
- CO2 Gas Charge: 1 x 0.073 lbs. (1 x 33 grams)
- Survivor Locator Light: Water-activated. TSO-C85 Approved.
- Service Life: Indefinite if unit continues to pass periodic maintenance inspection.
- Frequency of Inspection: Every 60 months for P01202-1XX Assys. in Standard Polybag; Ten (10) year frequency available in special Extended Shelf Life packaging.
Reviews
I will purchase again if needed
Verified Purchase
EAM Uxf-35 Life Jacket 10 Yr Yellow Passenger
This life jacket is of the same quality as the airlines. Came fast and as advertised.
Verified Purchase
EAM Uxf-35 Life Jacket 10 Yr Yellow Passenger
Great service.
Very good price for the product. on time delivery as always.
Good !!
Verified Purchase
EAM Uxf-35 Life Jacket 10 Yr Yellow Passenger
These vests are like parachutes, if they dont work you will never hear about it.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per supplier: 7" x 5" x 1.5" and approximately 1 lb.
No, the whistle is not included standard. This part number, 13-12684, does NOT include a whistle. To order the version with the whistle, please use part number 13-13066.
Yes, this vest does come with the pouch. There is no velcro included, that must be done by the end user.
No, this does not come standard with certs or 8130. For export 8130, it must be requested at time of checkout (additional fees apply).
No. These are in sealed bags and intended to be opened when needed to maintain 10 year life cycle.
