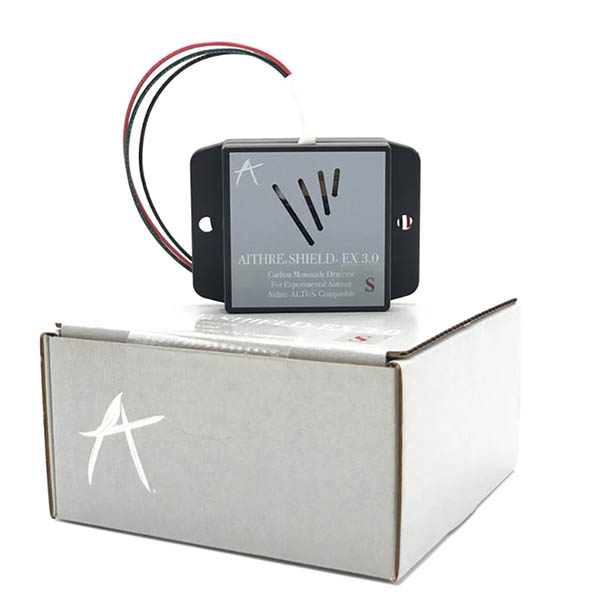

Aithre Shield Ex 3.0-s
$495.00/Each
Add to cart for current price
Add to cart for current price
Part# 11-19735
MFR Model# ASCOX30S02
MFR Model# ASCOX30S02
FREE Shipping
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
Overview
|
Note: Experimental Aircraft Only The Aithre Shield EX 3.0-S is the first behind-the-panel device that puts carbon monoxide readings, pilot SPO2 from your Aithre Illyrian, and portable oxygen bottle PSI from your Aithre Altus Meso directly on EFIS using RS-232 output, as opposed to the voltage outputs of the sibling Shield EX 3.0. The EX 3.0-S works out-of-the-box with the current version of Advanced Flight Systems Avionics firmware. Check with your avionics manufacturer to verify support of the Aithre RS-232 protocol, which is published on our website on the Instructions & Resources page. Otherwise, see the sibling Shield EX 3.0 with its standard voltage outputs that are compatible with Garmin, Dynon, and other avionics manufacturers. Features simple wiring installation, a small lightweight footprint, iOS integration, and 10 years without recalibration for the CO ppm. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Altus Meso Compatible: Wirelessly retrieves oxygen bottle PSI data from the Aithre Altus Meso to allow portable oxygen pressure to be provided to your avionics along with carbon monoxide data.
- Illyrian Compatible: Wirelessly retrieves pilot blood oxygen levels from the Aithre Illyrian to allow for SPO2 blood oxygen levels to be provided to your avionics along with carbon monoxide data.
- Output to Avionics: Simple installation using just one wire carrying the Aithre RS-232 data protocol.
- iOS: Integrated with the Aithre Connect iOS app to provide discrete and trend CO levels, plus Siri voice notifications to your paired headset (when paired to your iOS device), including 2 ppm, 10 ppm, 50 ppm, and a custom level.
- CSV Files: CO trip history plotted against speed, altitude, and temperature is provided for your last three trips in the app and automatically saved after each trip as a CSV file to the iOS FILES app.
- Sensitive and Precision Calibrated: Under 30 second CO sensor response between 0 - 255 ppm with 1 ppm resolution.
- Compact: Measures just 1.97” x 1.97” x 0.67” tall and weighs 1.1 ounces (mounting flange adds 0.75" to base width).
- Temperature INDEPENDENT: Internal temperature adjustment circuit that compensates for temperature induced CO reading errors in the CO sensor between -10°C to +50°C.
- No Recalibration: State-of-the-art CO sensor requires no recalibration for 10 years under normal operating conditions.
- Pressure and Altitude Independent: The CO detector is not affected by pressure and altitude changes.
- Hand-Calibrated: Every Aithre CO detector is individually calibrated using high precision calibration CO gas and comes with a signed certificate of calibration.
