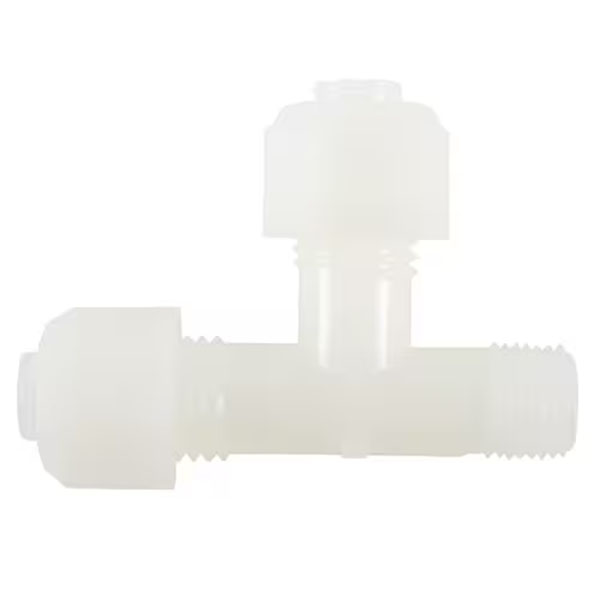

Nylo-Seal Fittings 271-N04X04

0 Reviews 2 Answered Questions
$5.35/Piece
Quantity
Add to Wishlist View More In This Series →
Part# 271-N04X04
MFR Model# 271N-04X04
Tube
OD		Pipe
Thd.		ABDEFPart Number
1/41/459/6413/327/3215/3229/32271-N04X04

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Less 10% on 50 pieces per size, Less 20% on 100 pieces per size
