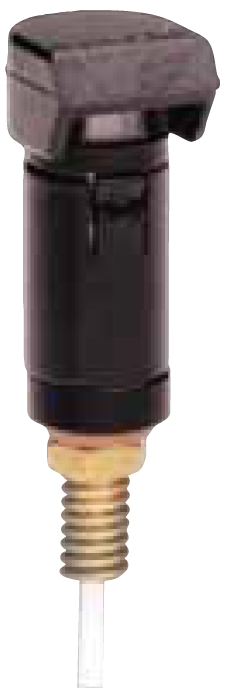

Whelen LED Post Light 14V Long 01-0771434B11
MFR Model# 01-0771434B11
FREE Shipping
| Description | Part Number |
|---|---|
| White Long Black 14V | 11-13607 |
Overview
|
Product (Aviation) - The 71434 Series LED (Light Emitting Diode) instrument post light assemblies are designed to illuminate the instrument panel and function as instrument mounting bolts. They are a high quality, long lasting modern alternatives to standard incandescent post lights. Benefits of upgrading to LED technology include: Long Life (approx. 20,000 hours); Reduced Power Consumption (compared to conventional light sources); Shock & Vibration Resistance (no fragile filament to burn out); Light Color & Temperature (produces bright, crisp light); and No EMI or RFI Interference. Model 71434 is identical to the 71450 without the connector nut. Both are available in Black and Grey. 14V version available with White LED, 28V version with White or Red. Made to replace existing A350 and A350CN assemblies. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Exposed Height: 0.95” (24mm) with spacer, 0.875” (22mm) without spacer
- Current Draw: .10 mA @14 VDC & 28 VDC
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these post lights are dimmable.
Yes the LED post lights would need to have a pulse width modulated dimmer switch to operate as LEDs do not dim in a linear fashion like the incandescent assemblies.
The threaded length is the main difference between the two, short is 1" and long is 1-1/2".
