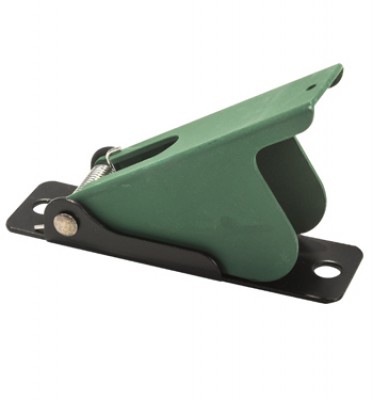

Metal Green Swtch Guard 2 Pos

$29.85/Each
Part# 11-06222
MFR Model# 8499K1
DescriptionPos.ColorPart No.
Metal2Green11-06222

Overview

Spring Loaded Switch Guards. Klixon switch guards can be used with 2 or 3 position switches. Covers are molded out of Thermoset molding materials. Guard covers are spring loaded to close.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

These are great for covering three-position rectifier switches in guitar amps, but closing the cover still moves the bat to the middle position. I use a dremel to rout enough clearance so the switch stays where I put it.

Mar
March 22, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the Klixon Switch guards allow the switch to be either on or off when the cover is closed or just off?

When closed, the switch can only be in the off position.

Q: How large is the mounting hole?

The diameter of the hole is .459 inches.

Q: Will the Klixon switch guard remain open if selected?

No, they are spring loaded to remain closed.

Q: Is the mounting hole keyed?

This is not keyed per the vendor.

Q: Will this switch guard fit the pitot/static toggle, your part # Part# 11-12168?

Yes, this should fit that toggle.

Q: Does the green guard leave the switch in the on position?

Per Manufacturer: "8499K1, MS25452-1 Safran (Labinal Power Systems / Eaton Aerospace) toggle switch guard, Qualified to MIL-G-7703 & MS25452-1,Flush Mount for 2 Position Full Throw Switches, Permits locking toggle in extreme up position, Metal Green Lever."
