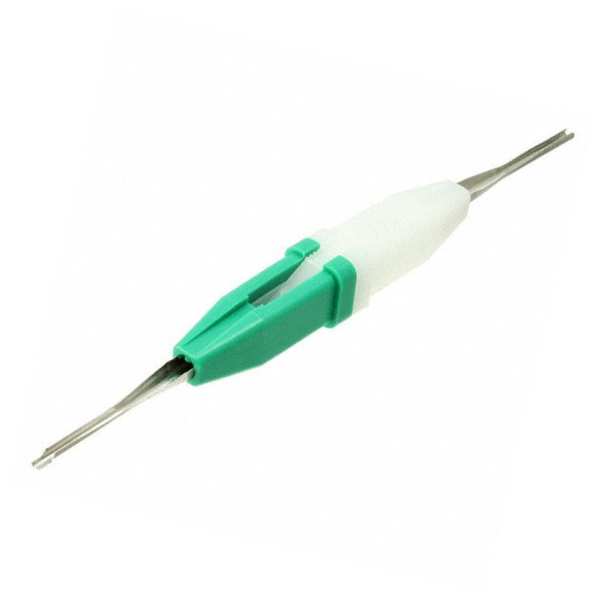

Ins/Extr. Tool 22 Awg G/Wh M81969/1-01
MFR Model# M81969/1-01
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Description | AWG | Material | PN |
|---|---|---|---|
| Insertion & Extraction / Green & White | 22 | Metal | 11-04434 |
Overview
|
The insertion of contacts during assembly or replacement during repair is quick and easy with the appropriate tools. The tools have to fit the contacts and the connectors if assembly and repair are to be carried out correctly. After you've installed the pins on the wiring to a connector, this tool will help you set the pins correctly into the connector housing. This tool is also absolutely necessary to use for extracting a proken pin for replacement or moving a misplaced pin for relocation. Insert and extract all your connector pins & sockets with this premium tool. |
 |
