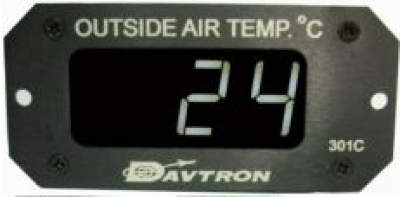

Davtron O.A.T. Celsius With White Led

$232.95/Each
Part# 10-04544
MFR Model# M301C-WHT
DescriptionPN
O.A.T. CELSIUS WITH WHITE LED10-04544

Overview

Davtron M301 Features:

  • Fahrenheit or celsius
  • Minimum panel space
  • Light weight
  • Automatic dimming
  • Miniature remote probe
  • Sunlight readable display
  • Laser engraved faceplate
  • FAA/PMA Approved


Download M301 Brochure

Davtron FAA PMA # PQ1062NM

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Installation

  • Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
  • FAA/PMA Approvals:
  • Schweizer Model 269D
  • Diamond Aircraft Model DA20-A1
  • Download FAA 337 Form

Specifications

  • Temp. Range: 301C -40°C to +100°C Accuracy ±1% of full scale
  • Temp. Range: 301F -40°F to +199°F Accuracy ±1% of full scale
  • Input Voltage: 14 to 28 Volts
  • Input Current: 150 mA max.
  • LED Display
  • Operating Temp.: -25°C to +60°C
  • Weight: 4 ounces
  • Warranty: 1 year

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Interested in Davtron digital OAT model 301F 28V. Is the probe included in this price as well as installation hardware? Is there any way to get a picture of the probe?

Yes, the digital OAT probe is included, along with 4 mounting screws. A picture of the probe can be seen under part number 11-10717.

Q: Are the only aircraft certified for this gauge the 2 listed on the Installation page?

That is correct. Other installations would require to be installed with a 337.
