UMA 3-1/8 Airspeed Indicator 40-260 Knots TSO
MFR Model# T16-311-260
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Description | Part No. |
|---|---|
| UMA Single Scale Airspeed Indicator Range: 40-260 Knots | 10-03261 |
Overview
|

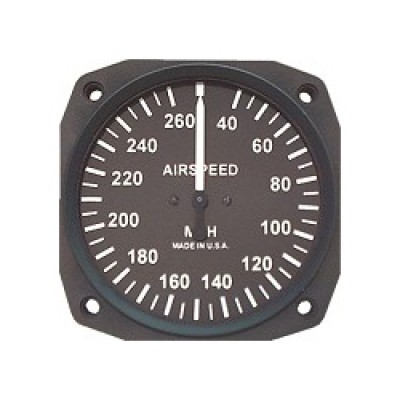

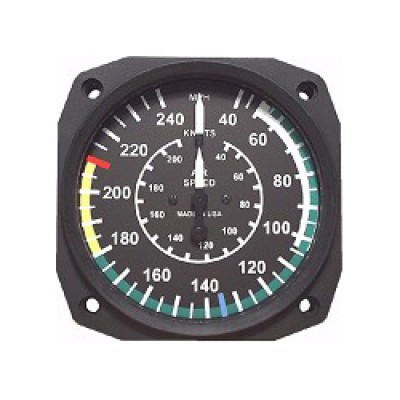

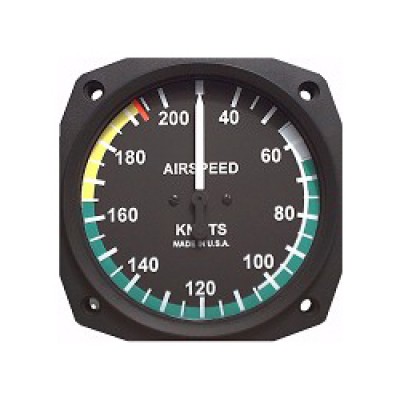

UMA Indicators are fully FAA TSO'd to C2d specifications. Installable in a fixed wing aircraft with a reciprocating or Turboprop Engine. Must be installed in a temperature controlled environment form -55 to 85°C, to a max altitude of 25,000 ft. 3-1/8" Airspeed Indicator (Refer to Image #1) Dual Scale (MPH/Knots) Case: Valox 420 Plastic Weight: 8.6 oz. 3-1/8" Airspeed Indicator (Refer to Image #2) Single Scale Case: Valox 420 Plastic Weight: 8.6 oz. 2-1/4" Airspeed Indicator, Single Speed MPH (Refer to Image #3) Case: Valox 420 Plastic Weight: 8.6 oz. Range marking are not standard. Must be added at time of checkout |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
I ordered one through Aircraft Spruce. A few days later, I called UMA directly to get an idea of when I could expect the part. I was very surprised at how far out the delivery time was going to be, so I very nicely asked if they could do something about it. I was astounded what they offered to do. To make a long story short, I had the part by that weekend (I called on Monday.) Unfortunately, the part had been damaged in transit, so I sent it back and they repaired and had it back to me the following week. Their customer service has moved them to the front of my list if I ever need another instrument like this. Im a very happy customer.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
When you order the ASI, you will need to also add accessory part # 10-02792 for the custom range marking option.
Range markings do not come with the standard instrument. For range markings, add part number 10-02792 to your order and specify arcs.
Part # 10-02792 is UMA RANGE MARKINGS. Once you add one of the ASI indicators to your shopping cart, it will prompt you to add range markings if you need them.
No it is not. You will need p/n: 11-07239 and this requires an inverter. 28V - P/N: 10-00986 | 14V - P/N: 10-02083
The gauge has a female 1/8npt port so something like 268-N04X02 would work.
