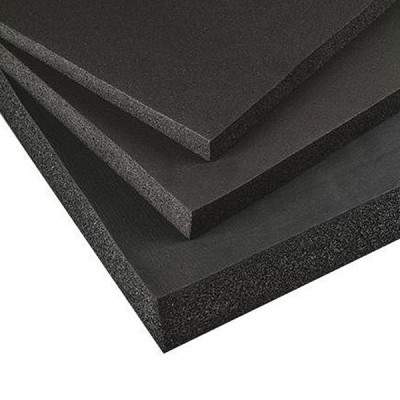

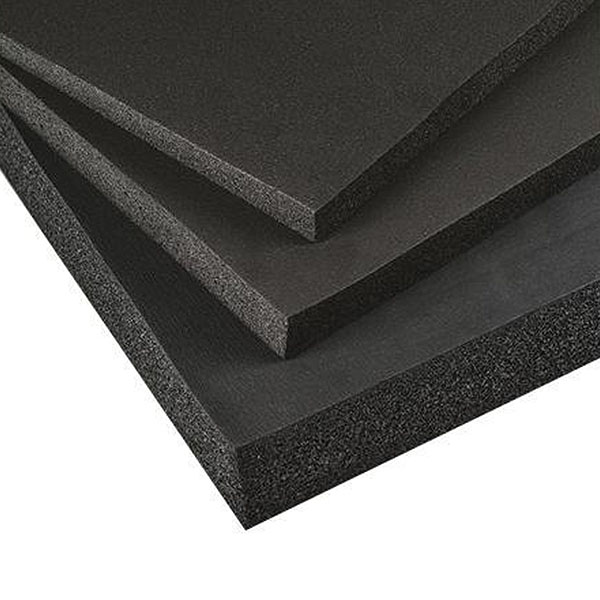

Super Soundproofing 1/8X36X48 Sheet Black

$18.95/Each
Part# 09-06380
MFR Model# APS18043

Overview

Note:1/8 thickness are 36 x 48 inch sheets. All other sizes sold by the foot.

This material is excellent for reducing noise levels in all types of certificated and home built aircraft. It is a closed cell vinyl insulating material which will not absorb water or oil. Has fire retardant qualities and meets FAR 25.853a Appendix F, Pt1. It is smooth on one side for easy attachment to the inside cabin skins, sides, top and front firewall.

Excellent for helicopters as well. Furnished in bulk 48" wide sheet, it is easily cut by scissors and attached with contact cement. Available in black only.

Meets FAR23.853(a)at Amdt. 23-62; as tested by AV-23-2A, Section 8.b. & 14 CFR 25.853(a) at AMdt. 25-116; Appendix F, Part I(a)(1)(ii).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications Chart

  • Size Chart:

    Thickness (inches)Weight per Linear Ft
    1/8.25 lbs.
    1/4.60 lbs.
    3/8.80 lbs.
    1/21.0 lbs.
    3/41.4 lbs.
    12.0 lbs.
    24.0 lbs.

Reviews

I ordered a large amount of this material. Aircraft Spruce did a great job packaging the material and the shipment time was incredibly fast for a bulk item. The material was easy to work with and install.

Joseph W
February 20, 2020

This material seems terrific for insulation my Vans RV-7A experimental airplane. Im installing it now on the floor of cargo area and under seats. I cut it just slightly over size and smash it in. Im not glueing. Fills the gaps nicely. Seems like it will offer both Sound and temperature benefits. Doesnt weigh much. Im using 1 inch which stays under places where I mounted wires.

Steve
April 21, 2018

I had to service/replace some of the ceiling panels in my 1975 Commander so decided to soundproof while I was there. The early Commanders just had 1 fiberglass batts installed throughout most of the plane and these are acoustically useless. I removed them and cleaned the underlying surface with lacquer thinner to give a good surface for new adhesive. I selected the 1/2 thickness for the ceiling/sides based upon the weight and also because most of the stringers in the Commander are 1 or larger so this left easy access for running the existing antenna and power cabling on top of the insulation. This was easy to cut with scissors. I used the old removed pieces of fiberglass as rough templates. For the aircraft sides and ceiling I slightly oversized so that the pieces would hold into place during a test fit then applied 3M 90 contact adhesive to all corners then every about every 6 inches. For the rear plastic bulkhead parts, I removed the old fiberglass, cleaned the surface and repaired old holes/cracks, then applied this soundproofing to the rear of the pieces with plenty of contact cement. Sounds reduction is pretty good but hard to compare to anything else. Coming from the original fiberglass which acoustically did nothing to this is obviously a substantial improvement. I havent yet done the firewall and front foot well areas as they will want 1 or more, but Im pleased with the ease of working with this product and weight.

Glenn M
June 9, 2017

glues in with weatherstrip adhesive or contact cement or cut it oversize and stuff it into a cavity. reduces sound in the 1/2 thickness pretty well.

Alan C
March 10, 2017

Looks good. Haven’t installed it yet as I have other work to finish first. Seems very stout compared to he 60 year old deteriorated product that just vacuumed up.

Phil
January 19, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the dB noise reduction rating for the various thicknesses? And does it realy work to cut down aircraft engine noise?

Per the manufacturer, the booklet, "How To Soundproof Light Aircraft" has pertinent info about this. The question about the dB noise reduction rating isn't pertinent because the soundproofing foam we use in an aircraft is more absorption than having a Noise Reduction Coefficient (NRC). The booklets are available at no charge, part number 09-42755 and can be found in the "Accessories" tab of this web page.

Q: How wide is the super soundproofing sheet?

The sheets are 4 ft wide.

Q: Will an epoxy effectively glue this material to fiberglass or Divinycell?

Yes, as this is a foam type material. This should effectively adhere without a problem. Another option would be to use a contact cement as this would only be a 1 part vs. an epoxy being a 2 part.

Q: Which contact cement is recommended for this Super Soundproofing Sheet?

The manufacturer does not have a recommended adhesive, but we do offer Pliobond, and spray adhesive like Thermo-Tec heavy duty spray adhesive which are used for soundproofing material. There are other adhesives you can review in our catalog or our web site.

Q: Is the smooth side paintable?

This material was not designed to be painted, but it can be painted. A test sample would be recommended.

Q: Is this foam 09-42725 the same as foam 09-00444, but without the adhesive?

Yes, that is correct. You can use either Pliobond or a spray adhesive for the one that does not already have the adhesive with it.

Q: Is this product spongy or bendable in nature, or does it not compress easily or bend?

It is spongy and will bend and form to curves easily.
