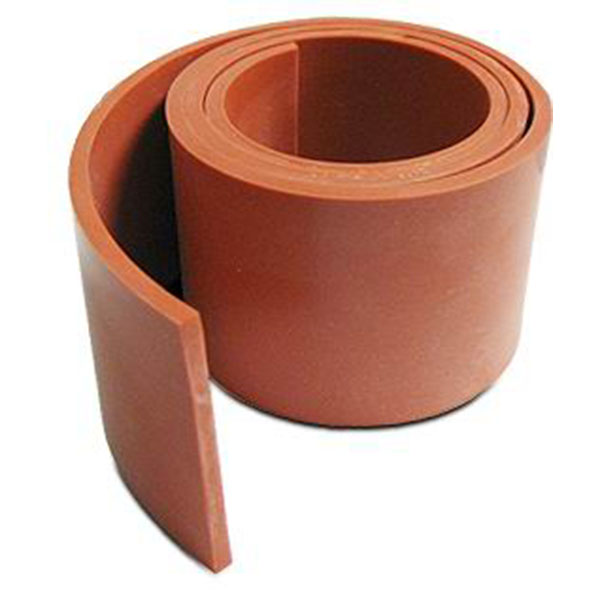

Silicone 1/8X3X9 Red With Mat
MFR Model# AISR3-RED
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Description | Part No. |
|---|---|
| Silicone Oxide Red 1/8" x 3" x 9ft Furnished with fiberglass insert | 05-00770 |
Overview
| This silicone rubber is excellent for replacement of baffle seals as it exceeds asbestos type seals in durability and flexibility over its entire operating heat range of -80 F to +425 F. Meets Mil Spec ZZR765B. ISR3 meets Mil Spec AMS3320 (PN 05-00770, 05-00771-3, 05-00771) AMS3303 for all other. Available in red, blue & black. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
good quality just what I needed
Fast shipping and order fulfilment
Top of the market
Excellent product to replace worn or damaged baffle. The product is of high quality very flexible and easy to cut to the exact required size
Great product and great delivery. I would recommend this to anyone that needs baffling replaced.
Great for cutting out those odd shaped baffles.
I am familiar with this product and have used it previously. I am purchasing more based on my success with it in the past. ACS is the leader in supplies for EAB builders. Thanks
Excellent product for many uses. I bought this to make a gasket for an antique engine.
Nice material, easy to work with. Great replacement for the 25 year old seal in my RV6A. My one complaint: The 9 foot roll was about 1 foot less than needed to do the complete job. I had to order a second roll to finish the job a week later. Be sure to have high temperature RTV to seal up the gaps between the Baffle Seal and the AL engine baffles.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The fiberglass insert is impregnated between two layers of silicone, and is much more durable than just the silicone alone. We have added links to the other colors in the "Alternate Items" tab of this web page. We will be updating the photos for each color today so they will be more distinguishable from the thumbnail image.
This silicone baffle material is commonly riveted in place, and a silicone sealant is used to seal any overlapped material. We offer a silicone molding adhesive, part number 05-04555, but it does not have any info regarding oil. It is normally used for door molding or anti-chafe silicone material.
No, this was a typo on our web page. We have corrected. Thank you for bringing to our attention.
