(Hover to zoom | Use mouse wheel for +/-)

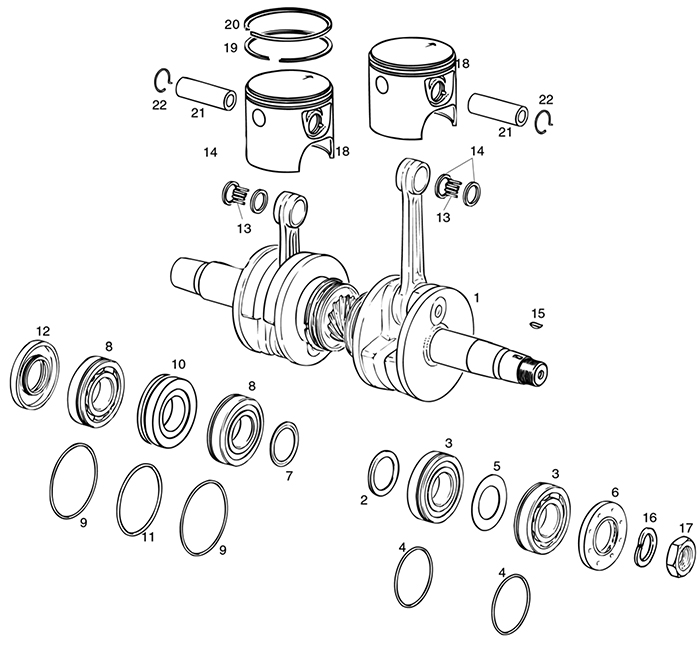

No. | Rotax Part Number | Description | Qty Req | PN | Price | Buy |
---|---|---|---|---|---|---|
2 | 827-441 | SPACER RING 30,5/42/2 | 1 | 15-00844 | $6.97 | |
5 | 827-715 | STOP SHIM 30,4/51/1 | 1 | 15-00852 | $2.06 | |
6 | 830-748 | OIL SEAL 30X62X7/7,5 | 1 | 15-00907 | $25.05 | |
7 | 827-760 | DISTANCE RING 35,5/47/2 | 1 | 15-00854 | $4.62 | |
11 | 830-370 | O-RING 63-2,5 | 1 | 15-00899 | $4.59 | |
15 | 246-055 | WOODRUFF KEY 3X3,7 DIN 6888 | 1 | 15-00242 | $2.30 | |
16 | 945-759 | LOCK WASHER 22 | 1 | 15-03367 | $1.10 | |
17 | 842-239 | HEX. NUT M22X1,5 | 1 | 15-01245 | $8.40 | |
19 | 215-201 | RECTANGULAR RING 76,25 MM | 2f | 15-00013 | $45.95 | |
19 | 215-202 | RECTANGULAR RING 76,5 MM | 2g | 15-00014 | $45.95 | |
20 | 915-821 | SEMI-TRAPEZ RING 76,25 MM | 2f | 15-02810 | $68.10 | |
20 | 915-822 | SEMI-TRAPEZ RING 76,5 MM | 2g | 15-02811 | $68.10 | |
22 | 845-540 | MONOHOOK CIRCLIP 18 | 4hi | 15-01310 | $1.25 |
- Items not illustrated
Explanations of symbols and statements in part number charts:
|
