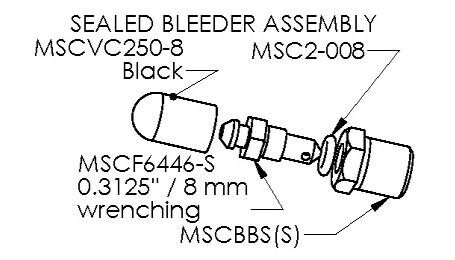

Matco brake bleeder valve assembly MSCBBS(S)S. Latest generation bleeder assembly provides a seal and wrenching feature for either US or metric sizes. 1/8" NPT threads |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
They fit great and work well. The only negative is the caps. They don’t fit over the bleeder valve. They do not appear to be fashioned for this valve like the old ones. I am looking for an alternative cap to keep the valve clean and covered.
Matco Brake Bleeder Valve Assembly Mscbbs(S)S
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This part has a 1/8" NPT threads.

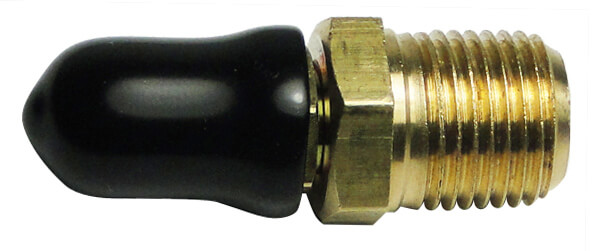

The black cover shown in the photo is a dust cover. It is removed and the valve stem is opened 1/2 to 1& = turns to allow flow through the bleeder. When complete, the bleeder is tightened about 30-40 in-lb and the dust cap reinstalled.
1/8 NPT.
These are not FAA approved. For your aircraft you would need, 081-00100 and 079-00300.
