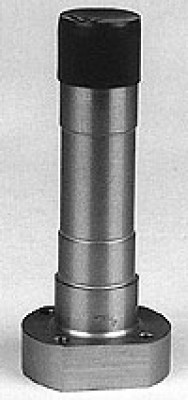

ACS Homebuilders Main Bolt - On 500 X 5 Heavy Duty Axle

$95.75/Each
Quantity
Add to Wishlist
Part# 11701-2
MFR Model# 11701-2

Overview

Machined from 2024T3 aluminum. Gold anodized per specification MIL-A-8625C, Type II for improved corrosion resistance. Length: 6". Mounting bolt pattern is four equally spaced 1/4" dia. holes on 1-15/16" dia. bolt circle. Thread size: 1-1/4" x 16. 3/4" Mount base thickness. For 199-152 heavy duty discs (as used in Cozy). Same as #11701 axles but 6" long and without undercut between bearings.

Made in USA
