Unheated Pitot Tubes L-Shaped Type

3 Reviews 5 Answered Questions
$55.90/Each
Quantity
Add to Wishlist
Part# 15135
MFR Model# 15135

Overview

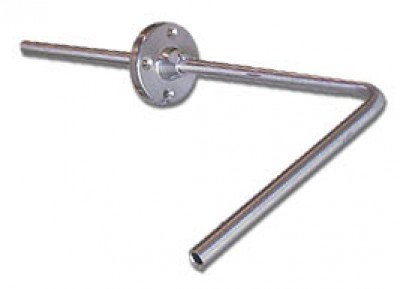

Flange mounted L-shaped model for under-the-wing mounting. 1/4" dia. aluminum tube.
Made in USA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Product is as exactly as advertised and was sent out on time just don’t use the post office for delivery

Tim
August 21, 2020

Good quality, great for ultralights

Glenn E
June 20, 2019

This pitot has 2 globs of which will show externally. It could have easily been welded so it would be inside the wing. The mounting holes werent positioned well either. Ill be repairing it before installation. This is not the fault of Aircraft Spruce.

Thomas G
May 31, 2019

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the aluminium grade for this unheated L-shaped pitot tube? Part # 15135

This pitot tube is made of 6061T6 aluminum.

Q: RE: part# 15135: What are the dimensions?

The length on the long side with the flange is 9-34" total. The length after the 90* turn is 4-1/2". OD of the flange is approximately 1/2" and the flange sits 4-3/8" from the top of the tube.

Q: What are the measurements from base to bend and bend to the tip? Is the flange base attached to the shaft or can it be adjusted?

The length on the long side with the flange is 9-3/4" total. The length after the 90* turn is 4-1/2". OD of the flange is approximately 1-1/2" and the flange sits 4-3/8" from the top of the tube. It is attached to the shaft.

Q: Questions about 15135 UNHEATED PITOT TUBES L-SHAPED TYPE <BR> 1) what is the thickness of the 1-1/2 OD flange? <BR>2) What is the total height of the flange? <BR>3) What is the diameter of the fixing holes? <BR>4) Are the fixing holes countersunk? <BR>5) What is the center holes diameter? <BR>6) Are the holes for rivets? What kind? <BR>7) Can the tube be bent? <BR>8) What is the minimum bending radius? <BR>9) Is it possible to use a 1/4 OD nylon tube (e.g. poly-flo) on this pitot? Is another size needed?

Per the manufacturer:
1) thickness is .250.
2) 5/8
3) .136 +/- .005 DIA THRU HOLE, 100 DEG X .250 DIA, 4 X 90 DEG X 1.100 DIA
4) NO
5) .255 +/- .005
6) HOLES CONFIGURED FOR A .125 DIA MS20426 RIVET
7) The tubes are already bent to 90 degrees
8) No info
9) No info, the aluminum tubing is welded into place

Q: What is the O.D. on either end of the aluminum tube itself?

Both ends of the pitot tube have a 1/4 inch OD.
