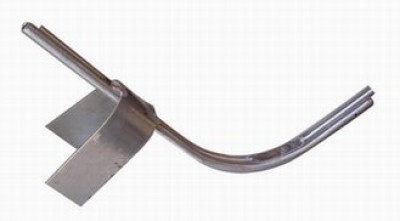

Unheated Pitot Tubes Strut Type Pitot-Static Tube

$47.50/Each
Quantity
Add to Wishlist
Part# 10-01900
MFR Model# 15155

Overview

Simple L-shaped design for clamping to strut. 1/4" dia. aluminum tubes. All installation hardware furnished.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size tubing is needed for each tube?

This item has an OD of a 1/4 inch. Instrument tubing that will fit around that will work. ex. 05-00944

Q: What are the overall dimensions of this pitot-static tube, and what type of aluminium is it made from?

The tubing is 6061-t6 and the bracket is 6061-o. The over all length is 9.5" with the bend starting at about 5". The bracket is 2.5" long and 1" wide.

Q: What size tubing do you order to connect to the pitot? Does the tubing go inside the tube or over top?

You would order 1/4 Id tubing such as 05-00944. It fits over the top of the tubes on the pitot.
