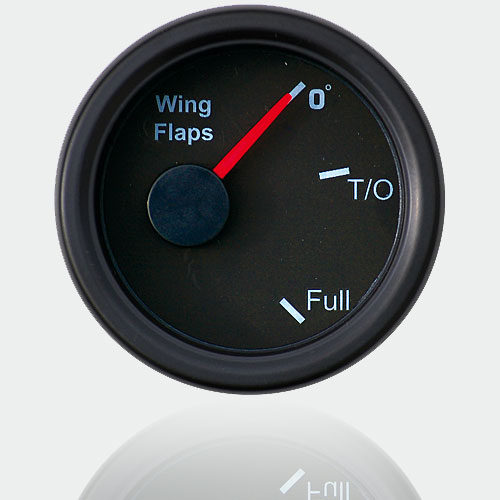

UL Flightline Wing Flap Indicator
MFR Model# XX14.0001.99
FREE Shipping
Overview
Wing flap indicator UL/LSA
|
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Operating voltage: 12
- Installation diameter: 52mm
- Resistance range: 3.180
- Special: MF, Option Warn-LED
Reviews
Well made lighted instrument and Transmitter. When the instrument is powered up, it goes into test mode. The light goes on for a few seconds, and the needle swings its full motion then stops at the correct position to indicate the current position of your flaps. Three of the four terminals on the back of the instrument are marked for POS, NEG and S. The one marked S goes to the UL Flightline Flap Position Transmitter (the only wire on the transmitter). The unmarked terminal on the back of the instrument goes to the panel light dimmer. The transmitter mounting pad needed to be drilled for mounting , and I needed to cut the indicator arm to the right length to fit my application. The Transmitter is not exactly a plug and play unit, however I thought it, and the Indicator Gauge were well built at a very fair price. Ron
Good product.
Verified Purchase
Ul Flightline Wing Flap Indicator
Okay
Verified Purchase
Ul Flightline Wing Flap Indicator
Item arrived with no wiring diagram. I returned it.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The installation diameter for this is 52mm which is approx. 2.04 inches. Behind the panel is 1-5/16 inches, not including terminals. Terminals are 1/2" deep.
No, the transmitter will have to be a separate purchase. Please view the accessories tab for the part # 10-06467.
