Rotax 912 Im-553 EGT 4 Reading 300-1000 :c Kit

$184.99/Each
Quantity
Add to Wishlist
Part# 15-08617
MFR Model# IM-553 KIT

Overview

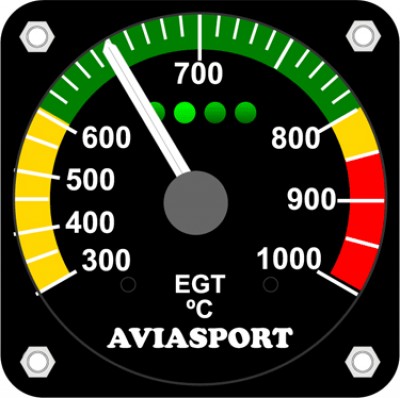

The IM-553 instruments have been designed especially to measure the EGT in Rotax® engines 912.
Includes the IM-580 EGT Connection Box.

The IM-553 is available in 80 mm diameter.

Can be connected four probes. First shows the temperature of one. After of 3 seconds automatically show the other probe temperature, The four LEDs are used to show that probe is reading.

The instruments use a pointer thats turns 240º, witch gives them great resolution.

Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 912 With Type "K" sender
  • Power Supply: 10.30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale: 300..1000 ºC
  • Subdivision scale: 10ºC
  • Max. Deviation: 1%
  • Dimensions: See sketch
  • Calibration: Calibrated by the manufacturer prior to shipment.

In The Box

  • IM-554 EGT Gauge 80mm ºC
  • IM-580 EGT Connection Box
