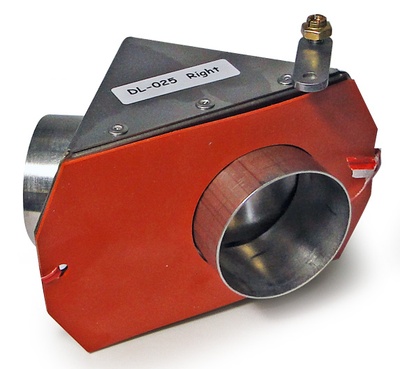

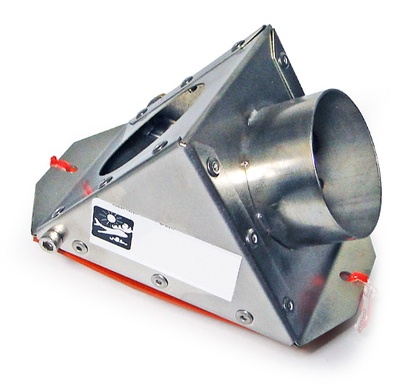

These boxes were developed for builders who want a simple, light, all stainless box that will fit in tight places, as it does not extend forward of the firewall as far as a standard box. The box is available in both left and right units. The hole spacing is correct for the pre-punched holes in the RV-10 firewall, but they can be mounted on any firewall. For ease in cable routing, the arm on the box is adjustable using the provided lock nuts. Everything in the unit is stainless steel, including bushings and rivets. It is furnished with a closed-cell silicone gasket. Weight is 9.8 ounces and has a 2" inlet/outlet port. Please note that these boxes are a direct replacement for the aluminum box available from Vans. The RV-10 uses both a left and a right unit, and they also can be ordered separately. If you are not sure which one(s) you need, refer to your firewall plans drawings. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
We’ll made good quality materials looks like it will last a lifetime
Short Sleeve Tri-Box Hb Cab Heat Bx Rt
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 08-04958 is the right box. Per the supplier, left box is special order only. Please contact sales for a current price and lead time on the left box.
The firewall mounting plate has dimensions of 5.125" x 3.25". The shaft extends 3/4" out of the box with an arm that measures 1.375". The apex of the box measures 2.75" perpendicular to the firewall.
Per the manufacturer: 2 inch.
