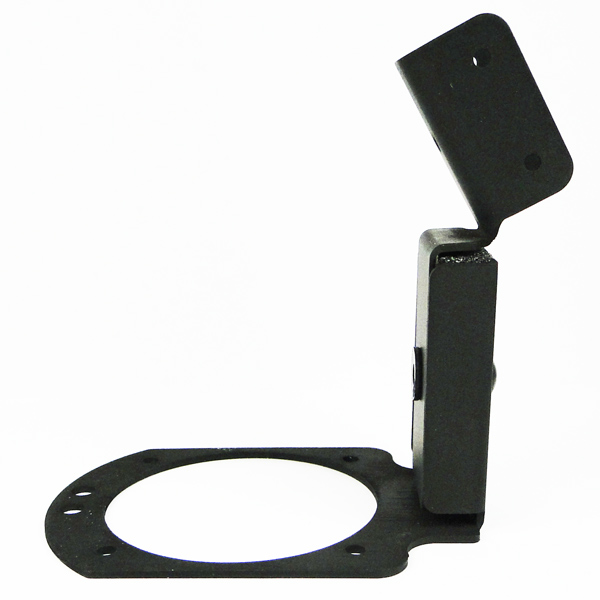

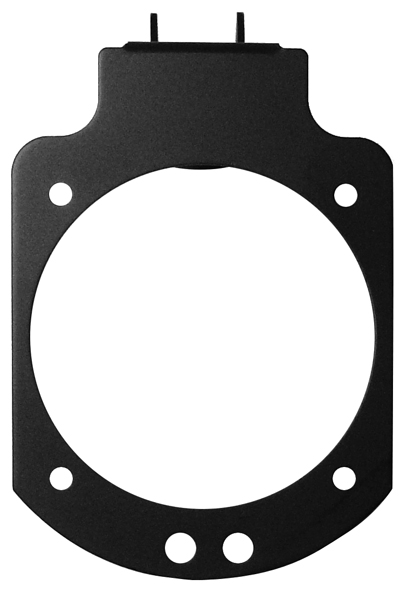

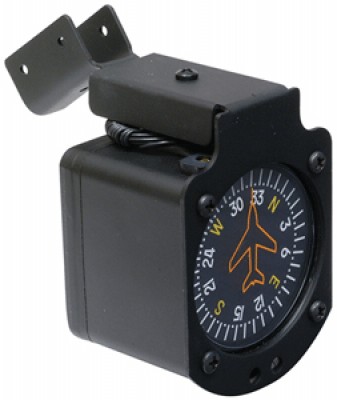

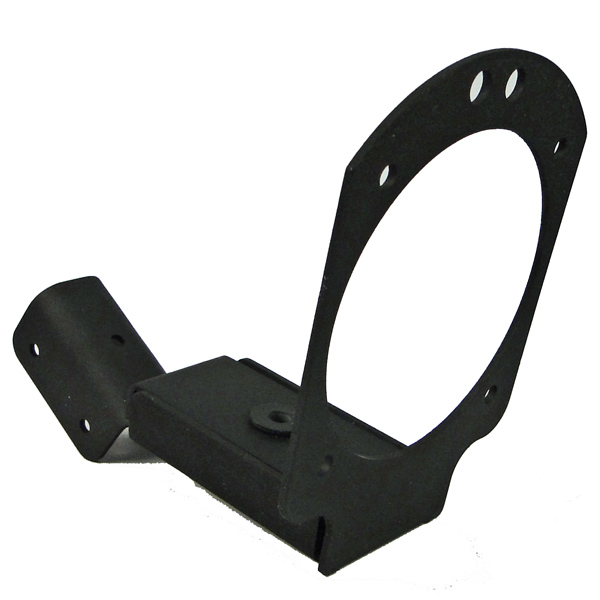

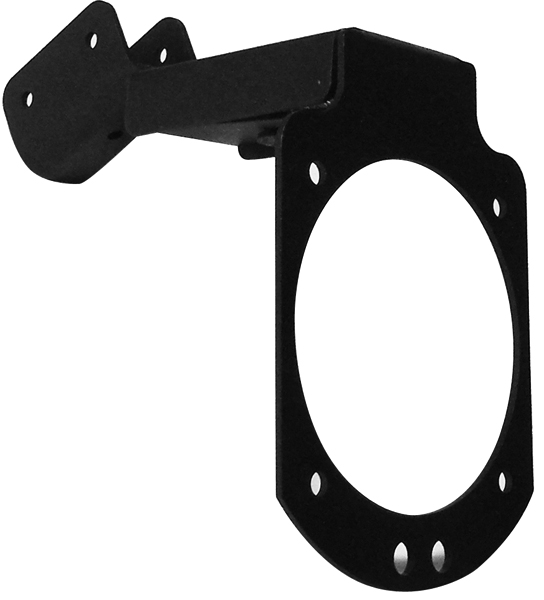

Note: Compass not included. Custom mount for several Piper models with 5/8" hat-section center windshield post. Models include Piper Cherokee, Warrior, Arrow, Archer, Lance, Navajo & Cherokee Six. Does not fit Commance center post. For a Commanche with a 1 inch hat-section, use part # 10-07931. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Fitted to a 1963 Cherokee 180B to replace a broken (custom made?) bracket with an E2B (2 1/4 /57mm cutout) compass. I drilled out all the fixing holes 4mm, and new holes had to be drilled in the windshield centre spine (a 90 degree drill chuck adaptor is required unless you want to remove your windshield), but otherwise very straighforward to fit. The vibration damper, although crude, appears to work extremely well.
Best plan using this for vertical compass card mount on pipers with 2 piece window installed. Magnetic deviation makes this necessary.
Precision Pacmo Piper N 5/8 Center Windshield Mounting Bracket
Precision Pacmo Piper N 5/8 Center Windshield Mounting Bracket
Fit the Piper Cherokee windshield post with no adjustment needed. Has good damping for aircraft vibration.
the bracket comes with a very poor quality piece of foam that is to soft and deteriorates quickly
