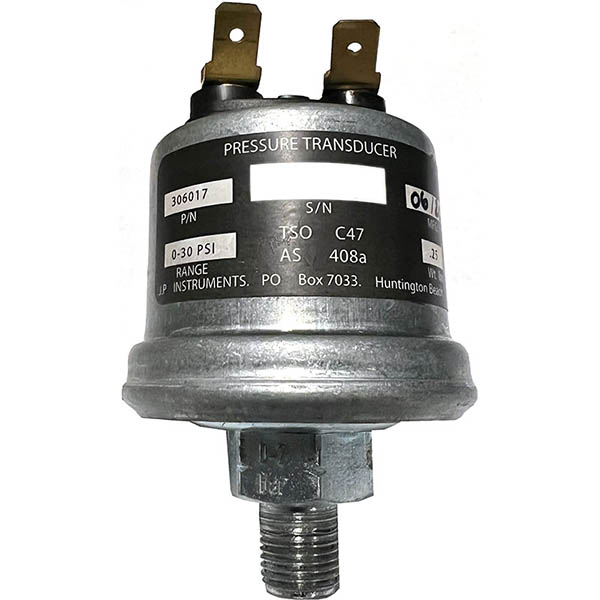

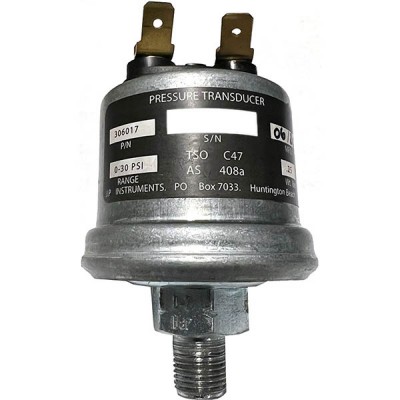

JPI EDM Fuel Pressure Sensor 3060-17

$269.95/Each
Quantity
Add to Wishlist
Part# 10-03922
MFR Model# 3060-17

Overview

The Fuel Pressure injected engine 5-32 psi, 1/8 NPT is mounted to the pressure line using a 6 inch flexible hose and fittings (not supplied). You would then mount the other side of the pressure line You would use tie-wraps to mount the pressure sensor on an engine mount structure. It is not recommended to mount the sensor directly to the engine block.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Removed a 4 wire transducer and installed this 2 wire, strange they both have the same part number contacted JPI they sent an update for the unit, also had to change factory settings. One other thing JPI suggested I buy from aircraft spruce as it would cost less.

Bill W Verified Purchase

J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO

May 15, 2024

Exact replacement for my JPI engine monitor. Old sender was reading high by 7 PSI and this fixed the issue.

James G Verified Purchase

J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO

September 15, 2023

Excellent replacement part.

Alan T Verified Purchase

J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO

February 18, 2023

Magaero L Verified Purchase

J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO

September 14, 2022

Magaero L Verified Purchase

J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO

August 30, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this Fuel pressure sensor integrate with the EDM-830? Does it integrate with the JPI Slim-line fuel pressure digital readout?

Fuel pressure not available for the EDM 830. The slimline includes the sender but is not FAA approved for certified aircraft.

Q: Will this work on a EDM 350?

Yes, this will work on the EDM 350 per the Manufacturer installation manual Rev IR page 11.

Q: will this work at 5 psi? ie from 0.5 - 5 psi?

This sender functions from 5-32 psi.

Q: Does this work for JPI 930?

No, this does not work for any primary JPI unit. This unit is only compatible with advisory units.
