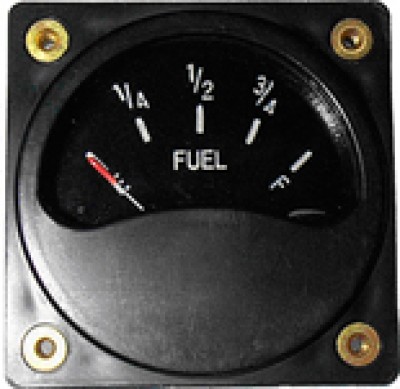

Swift Gauge Fuel 2-1/4 Single Fuel Level Gauge 5V Input

$58.85/Each
Part# 10-02264
MFR Model# F2-V

Overview

Swift Fuel Gauge
Size: 2-1/4"
Range: Single Gauge, Empty-full, 5V Input

Similar to Falcon Gauge
Made in China

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This Falcon gauge has a blue and a brown wire and no instructions as to where they go or what to connect them to, do you have a wiring diagram or instructions?

Connect the blue wire to the #4 post and connect with the signal lead from the sender. Connect the brown wire to the #5 post and connect to the sender ground. A diagram is typically found beneath the foam in the box.
