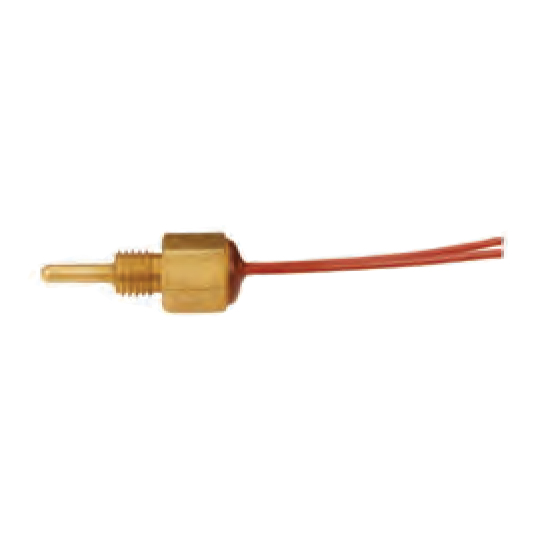

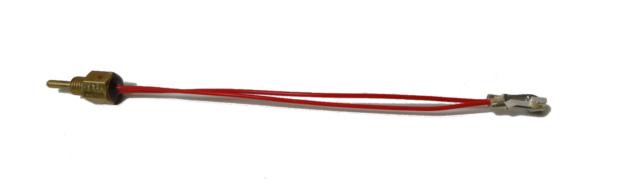

Probe For Carb Temp Kit B-5

$445.00/Each
Quantity
Add to Wishlist
Part# 10-10100
MFR Model# B-5

Overview

  • Probe fits pretapped hole in Marvel-Schebler and Bendix carburetors
  • Designed and built in Wichita, Kansas, USA
  • One year limited warranty

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Dimensions: 1-inch length x 3/8-inch hex
  • Weight: 0.2 oz
  • Temperature: –30°C to +30°C
  • Altitude: –1,000 to +50,000 feet
  • Humidity: 0 to 90% at 25°C
  • Vibration: .02 in. dbl. ampl., 3g @ 5 to 55 Hz
  • Certification: FAA PMA and STC approved
  • Mounting: Carburetor; 1/4 - 28 UNF threaded
  • Case Material: Brass
  • Connector: Burndy knife type
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Excellent

Mountain V Verified Purchase

Mid-Continent Instruments and Avionics Carburetor Temperature Probe B-5

September 17, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the part number for the copper washer?

There is not a copper washer included |with this probe. If you were to use one, part # AN900-4 would work.

Q: If we order PN : 10-10100 ... Probe ... would you be able to provide an 8130-3 ?

Yes, if requested at the time of order.
