Ray Allen Rbs Bezel Switches

4 Reviews 4 Answered Questions
From $6.95 to $129.85
Main Image
Main Image
Main Image
RAC Part No. Description Part No. Price Buy

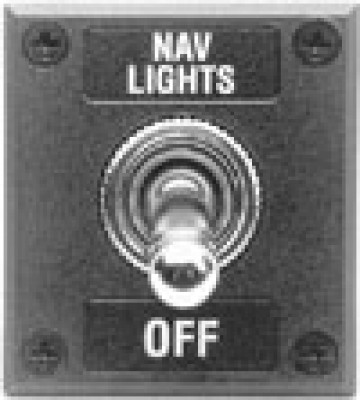

RBS-T11Bezel Switch - Toggle
11-01364
$28.65
Quantity
RBS-P11Bezel Switch - Push Button
11-01365
$27.75
Quantity
RBS-GSBezel Gear Switch
11-01366
$129.85
Quantity
RBS-L1Bezel Switch label sheet
11-01367
$6.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

An excellent addition to any instrument panel. The bezel measures 1.25"w x 1.35"h. A die-cut label sheet is purchased separately. The switches are SPST. They have screw terminals and are rated at 15 amps. Specify Toggle (RBS-T11) or Pushbutton (RBS-P11) when ordering. The Ray Allen Gear Bezel Switch (RBS-GS) is the same custom bezel as above combined with SPDT retract gear toggle switch. The switch is rated at 15 amps and has a pull to unlock feature preventing accidental engagement. The Gear Bezel Switch comes with the labels pre-installed.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Worked out perfect for my instrument panel, just relearn, and stick...good adhesion. Quality product.

David F Verified Purchase

Bezel Switch Label Sheet
September 25, 2024

Excellent switches! Professional toggle feel with firm resistance. Straight forward to install. Take your time to line up the upper or lower edges of the square switch frame and they will look perfect. Very satisfied with this product.

Roger Z Verified Purchase

Bezel Switch - Toggle
June 18, 2024

perfect

John E
August 24, 2020

The bezel sheet set is great but does not have gear up and gear down replacement placards. That is why I ordered the sheet set in the first place. Website information for ordering is vague. Being able to order the bezel without a switch would be good considering most have a switch installed.

Richard Y
May 3, 2018

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the push button a momentary switch?

Yes, momentary switch.

Q: Does the gear switch have only an up and down position, or up, neutral, down? Is it a two pole or four pole switch?

This switch has only the up and down positions.

Q: The gear switch, does it have 2 or 4 poles?

3 poles.

Q: Is there a layout template with dimensions for the screw and switch hole for those of us that want to laser cut out the panel?

Unfortunately there is no template provided for these switches.
