Overview

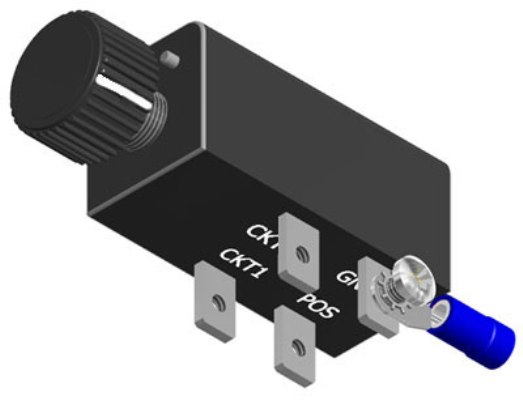

This Micropulse Landing Light Control has 12 to 35 VDC, 0-8 A per channel, Control over 224 Watts per channel in a .9" Inch square by 1.9" Package. Complete compact, light weight, powerful, solid state Landing light controller. The MicroPulse has all the functions you should need. MicroPulse Function Modes: Switch Positions OFF Both Circuits Off L Left on only (CKT1) R Right on only (CKT2) L&R Both circuits On A44 Alternate 44 PPM (STD) B44 Both Flash 44 PPM A88 Alternate 88 PPM A120 Alternate 120 PPM Capacity: 96 Watts @12 VDC each channel 224 Watts @28 VDC each channel Click Image to Enlarge

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

• Voltage Range: 12VDC to 35VDC
• Max Current: 8 A per channel
• Dual channel device
• Install with Standard Supplied solderless ring lug terminal
• Operating Temperature Range: -30 degrees C to +65 degrees C
• Storage Temperature: -40 degrees C to +100 degrees C
• Maximum Internal Temperature: @15A +15 degrees C
• Enclosure Material: Avantra 8731 polystyrene Meets UL 94
• Flame Rating: Meets UL94V-0 (@ 0.062"/1.5 mm min.) rating
• Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
• One Year limited warranty

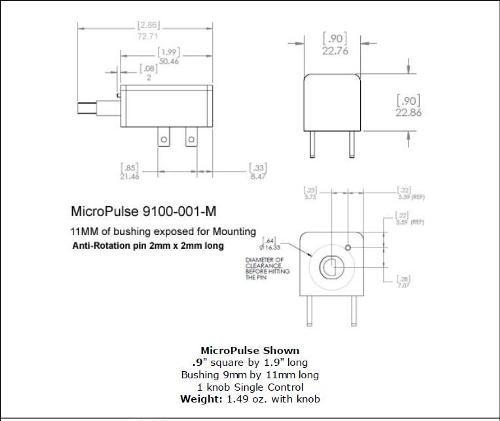

• Weight: 1.49 oz including knob

Features

• Dual Channel control of Lighting - P/N 9100-001-M
• Smallest all self contained Wig Wag and Lighting control
• Wig Wag Control, multiple rates, combinations of lighting
• No outboard heat sinks, boxes, rheostats, or other packages
• RTCA/DO-160E SEC 21: RFE Qualified
• Incandescent lights, LED landing lights, HID lights
• Configure for Wig Wag or Wing and taxi light pulsing, single
• light pulsing etc.
• Increased Visibility and Safety for your passengers and yourself
• Emergency Vehicles
• Hundreds of DC Lighting Control applications
• Assembled Totally in the USA.

Documents

• Installation Instructions (PDF)

In The Box

• MicroPulse unit
• Installation instructions
• Color coded terminals
• Reference panel label
• Knob
