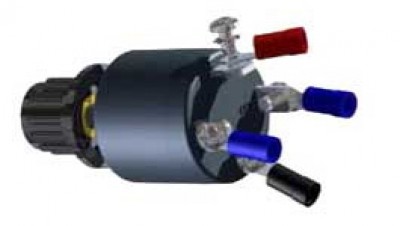

Maxpulse Landing Light Controller Model B - FAA STC

2 Reviews 3 Answered Questions
$359.00/Each
Quantity
Add to Wishlist
Part# 11-08175
MFR Model# 9200-000-B

Overview

Specifications:
  • 12-35 volts @ 10 Amps
    per channel - 2 channels
  • Ring Connectors
  • Controlled Output:
    0 to 12-35 VDC
    0 to 10 A per channel

Capacity per channel
2 channels:

  • 120 Watts @12 VDC
  • 240 Watts @24 VDC
  • 280 Watts @28 VDC
  • 350 Watts @35 VDC

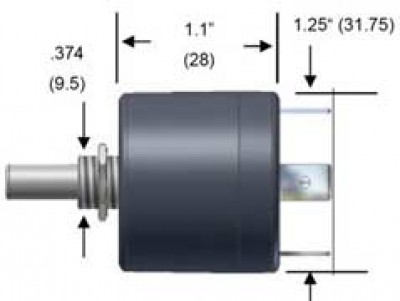

Ring lug unit similar dimensions

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Aircraft Landing Light Pulser
  • No outboard heat sinks, rheostats, or other packages
  • STC, PMA, RTCA/DO-160E SEC 21: qualified
  • Configure for Wig Wag or Wing and taxi light pulsing, single
  • light pulsing etc.
  • Increased safety for your passengers and yourself
  • Hundreds of DC Lighting Applications
  • Emergency Vehicles
  • Assembled in the USA

Specifications

  • 12-35 volts @ 10 Amps per channel - 2 channels
  • Two Channels

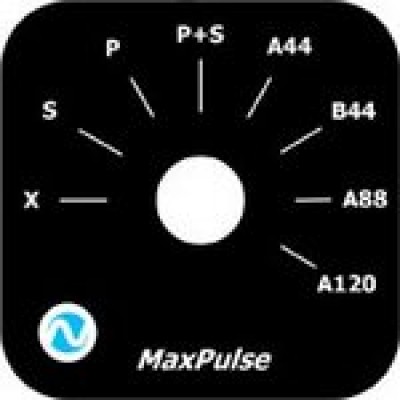

  • MaxPulse Function Modes: Switch Positions: X Both Circuits Off,S Starboard (right) on only, P Port (left) on only, S+P Both circuits On, A44 Alternate 44 PPM (STD), B44 Both Flash 44 PPM, A88 Alternate 88 PPM, A120 Alternate 120 PPM
  • Operating Temperature Range: -30° C to +65° C
  • Internal Temperature Protect: +85°
  • Storage Temperature: -40° C to +100° C
  • Maximum Internal Temperature: @10 A +25° C above Ambient.
  • Enclosure Material: Bayer FR110 resin Meets UL 94
  • Flame Rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
  • FAA STC/PMA Approved
  • RTCA/DO-160E Qualified
  • One Year limited warranty
  • Weight: 1oz (28g)
  • What's in the box?
  • MaxDim unit, installation instructions, color coded terminals, reference panel label, STC printout for your logs, installation template, and knob.
  • Ring Connectors
  • Controlled Output:
  • 0 to 12-35 VDC
  • 0 to 10 A per channel
  • Capacity per channel, 2 channels:
  • 120 Watts @12 VDC
  • 240 Watts @24 VDC
  • 280 Watts @28 VDC
  • 350 Watts @35 VDC
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Antonio M Verified Purchase

Maxpulse Landing Light 9200 B
November 28, 2023

easy install works as advertised

Ellwood D
May 20, 2018

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the Maxpulse Landing Light Control/Pulser work with my 24 volts system on my Cessna 185? Thanks.

Per the supplier: there should not be a problem as long as they do not exceed 10 Amps per channel.

Q: What is the difference between the MaxPulse Model B (PN: 11-08175) and STC'd (PN: 11-06998)? Thanks.

Per the supplier: the units are both STC/PMA approved. The 9200-000-B (part # 11-08175) unit has ring terminals, the 9200-000-A (part # 11-06998) has spade terminals. Other than that they are identical.

Q: Does this Maxpulse B have a wig wag function?

Yes, it does.
