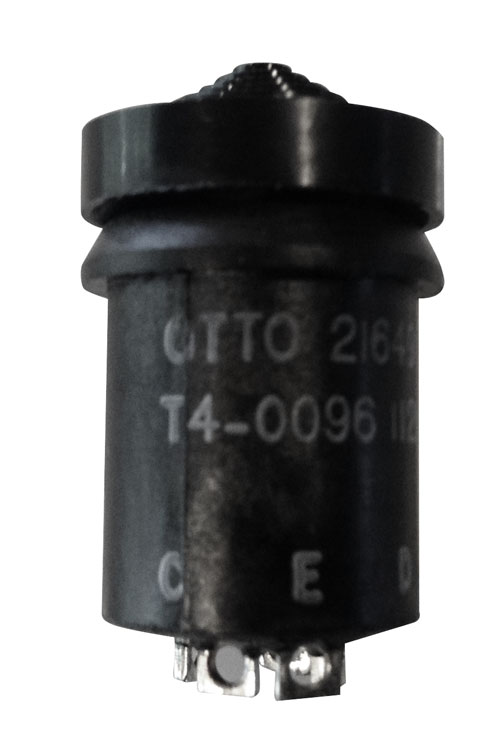

Cooley Hat 4 Way Trim Switch. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The switch diameter is 0.60 inches.
Depth from the top of the button to the base (excluding the terminals) is approx 1-1/8".
The switch OD is .600.
Single pole, 4 throw, center off momentary contact (self return to center off)
Rating: 1 amp inductive at 28 vdc for 100,000 cycles
Overload: 2 amp inductive at 28 vdc for 100 cycles
Dwv: 1050 vrms
