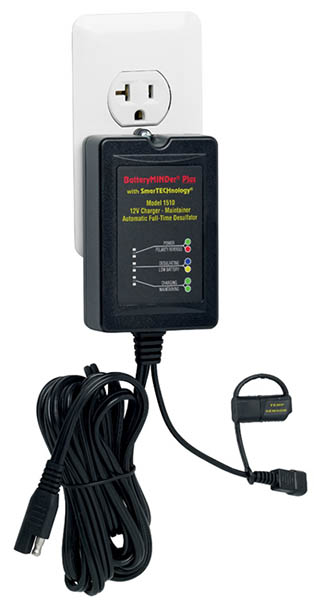

BatteryMINDer Plus 1510 12V 1.5A With Smartechnology
MFR Model# 1510
FREE Shipping
Overview
|
Note: Not recommended for aircraft batteries. For aircraft batteries, see the S2 or S3 series. BatteryMINDer® Model 1510 features a SmarTECHnology™ plug 'n run 1.5 Amp battery charger/maintainer with full-time automatic high frequency pulse desulfator (not high voltage)that can help extend a battery's life up to 4 times its normal life. Ideal for charging, maintaining or recovering 12V flooded, sealed, maintenance-free, starter, deep-cycle, Optima brand sealed AGM, and marine batteries. Worldwide 100–240 VAC 50/60 Hz input. FCC compliant and California Energy Commission certified. The unit can maintain up to four 12 Volt batteries at one time when connected in parallel by using SmarTechnology™ Y-Connectors (part# 210AY) or customer supplied 18-Gauge insulated wire. Quality Components The BatteryMINDer® is constructed using a 12ft. power cord and heavy-duty battery clips as well as other top quality components to provide lasting performance. The 90-240V AC 47-63 Hz input allows for worldwide use. Energy Star Rated If you're looking for assurance that this product is the real deal, look no further than its Energy Star rating. The BatteryMINDer® meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the Department of Energy, so you can rest assured it performs at the highest of levels. Certified Efficiency Not only is this unit FCC Certified as meeting or exceeding the requirements set forth for electronics products by this commission, but it is also certified by the California Energy Commission as meeting the current efficiency standards Quadruple Your Battery's Life The SmarTECHnology™ Plug 'n Run 1.5 Amp battery charger/maintainer system features a full-time automatic pulse desulfator that can help extend a battery's life up to 4 times its normal life when compared to new batteries that are not being properly charged/maintained over their lifetime. Just plug it in and the BatteryMINDer® takes care of the rest. The Right Charge Every Time An automatic high-low temperature compensator is installed in the BatteryMINDer® to ensure that batteries will never be overcharged or undercharged, regardless of the operating temperature. This ambient temperature sensor is installed for a -4°F (-20°C) to 122°F (50°C). Multi-Talented Performance If you're looking for versatility, look no further! The BatteryMINDer® can be used for charging, maintaining or recovering 12V batteries. The unit uses automatic full-time high frequency (not high voltage) pulse-type desulfation that is ideal for helping to recover weak batteries. Works with a Variety of Battery Types Flooded, sealed, maintenance-free, starter, deep cycle, Optima brand sealed AGM, and marine batteries — the BatteryMINDer® handles them all. This unit can even maintain up to 4 batteries at one time when connected in parallel (parallel connection requires use of Y-connectors, Item# 27879, sold separately, or an 18ga. insulated wire, not included). Dependable Protection For your safety, the well-being of your battery, and your own peace of mind, this charger system is equipped with built-in reverse polarity, short circuit protection and over-temperature protection. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Installed ambient temperature sensor for -20°C (-4°F) to 50°C (122°F) operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes.
- Extends battery life up to four times when compared to new batteries not being properly charged-maintained over their lifetime.
- Maintains up to four batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire.
- FCC Certified.
- Worldwide 100-240 VAC 50/60 Hz input.
- Recovers weak batteries.
- Automatic Full-Time high frequency (not high voltage) pulse type desulfation.
- Reverse polarity, short circuit and over temperature protection.
- Energy Star rated, which means it meets strict energy efficiency guidelines set by the US Environmental Protection Agency and the Department of Energy.
- Certified by the California Energy Commission as meeting the current efficiency standards.
Specifications
- Volts: 12V
- Amps: 1.5A
- Power Source: 100-240 VAC, 50-60Hz
- Works with: All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries
- Temperature Compensation: Yes: -20°C (-4°F) to 50°C (122°F)
- Multiple Batteries (#): 4
- Warranty: 10 Year
Documents
In The Box
- Model 1510 Charger-Maintainer-Desulfator
- Ring Terminal Assembly with Quick Connector
- Insulated battery clips
- Ambient temperature sensor (installed)
- 12ft. power cord
- Optional permanent mounting tab
Reviews
Second one I buy from aircraft spruce for my second car. Works great.
Verified Purchase
BatteryMINDer 1510
Now i have the correct type of battery charger / de-sulfate for my Concorde battery! Arrived with the battery I ordered and ready to install!
Sold by Aircraft Spruce and other aviation parts companies. I have a solar battery minder, but I needed one to plug into hangar power. Chose this one, probably my mistake, but in reading the small print in the instructions, not to be used for air fact batteries. JUST WHICH ONE OF ALL THE ONES YOU OFFER IS ALLOWED TO BE USED FOR AIRCRAFT BATTERIES, SPRUCE?????? Not happy!
Verified Purchase
BatteryMINDer 1510
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the BatteryMinder S5 model is the recommended charger/maintainer for Concorde batteries. See our part # 11-14349.
That is not approved for that battery. The 128CEC1-AA-S5 12V (11-14349) is the only batteryminder brand charger approved for your Concorde battery.
The 1510 only comes in one version, and the 10 year warranty is called out under specifications. As to full time analysis, that is specifically tied with the full-time automatic high frequency pulse desulfator within the Maintenance/Float stage of charging which keeps the battery at full charge while continually desulfating it to keep full capactity of the battery for the longest possible life.
