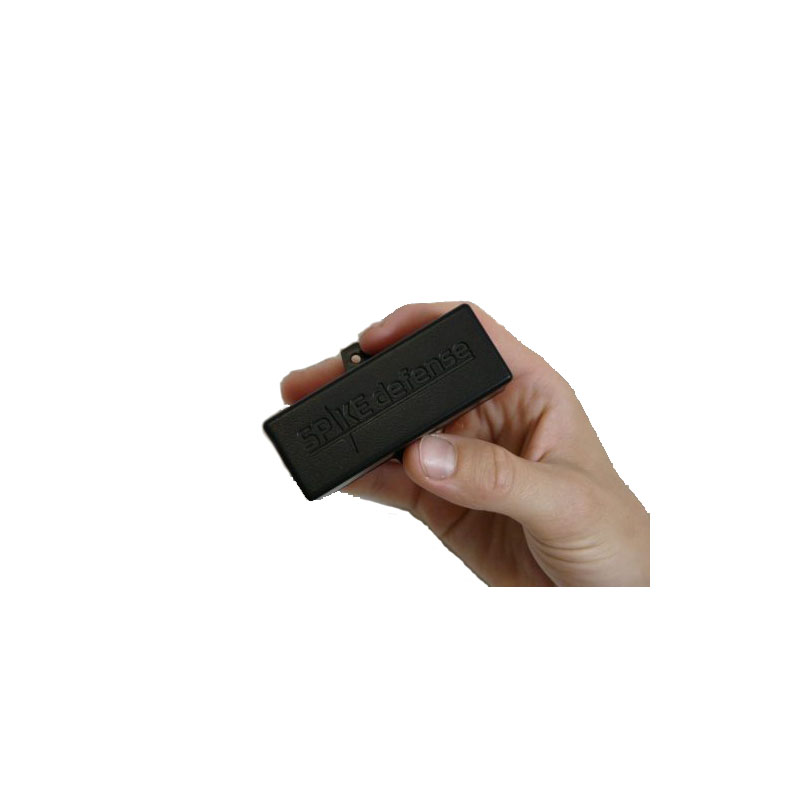

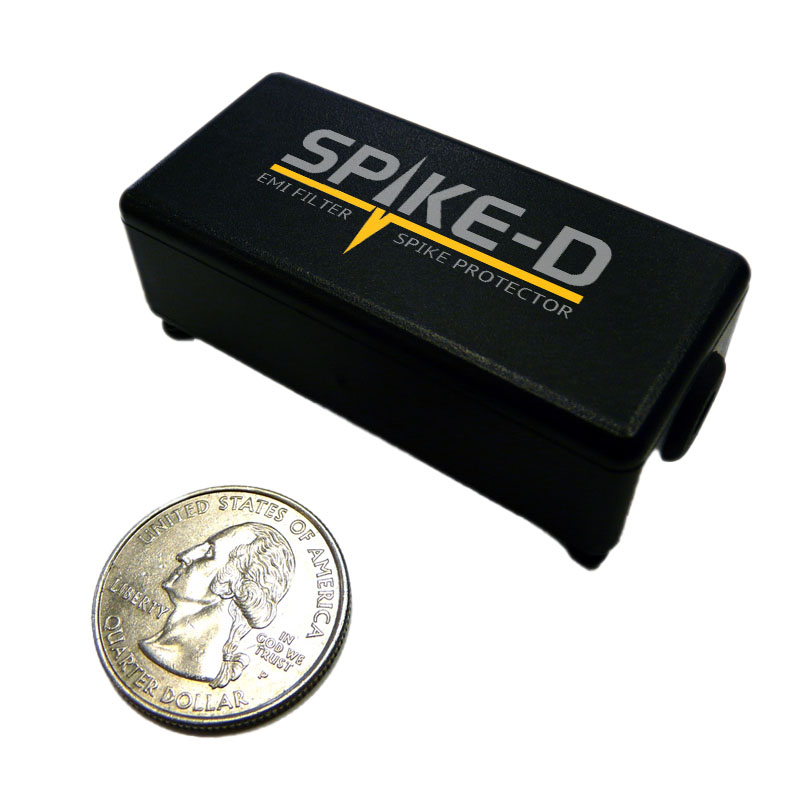

Electro Magnetic Interference (EMI) is a natural byproduct of all aviation anti-collision strobe systems, both old and new. It is created and radiated when strobe systems suddenly turn electricity into light pulses, and sometimes can be annoyingly detected in intercoms and communication radios as audio noise every time the strobes activate. Aveo Engineering designs and builds extremely quiet LED strobe systems, as evidenced by our beacons and wingtip units. So much so that Aveo products are widely used in military UAVs, where low EMI is an absolute requirement. Anything that could interfere with operational telemetry is simply not tolerated. In aviation, there is no such thing as good EMI, no matter how small. Aveo has taken the extra step to create the Super Spike-SD series of in-line EMI filters. These small, inexpensive units are extremely effective in greatly attenuating residual EMI found in avionics installations. Spectrum analyzer photos which can be viewed on the Aveo website: https://www.aveoengineering.com/spike-sd/ show just how effective the Spike-SD filters are. (Frequency range of the analyzer photos depicted is 300kHz – 2MHz, which corresponds to DO-160 Chapter 21, Emission of Radio Frequency Energy.)
IMPORTANT NOTE: Hercules Drop-In with the lower voltage range of 9-18VDC has only one input and cannot be used with super Spike-SD, as current consumption is 12.6A at 9VDC, which exceeds 8A per channel. Samson Drop-In also has only one input and cannot be used with super Spike-SD, as current consumption is 11.1A at 18VDC, which exceeds 8A per channel. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |

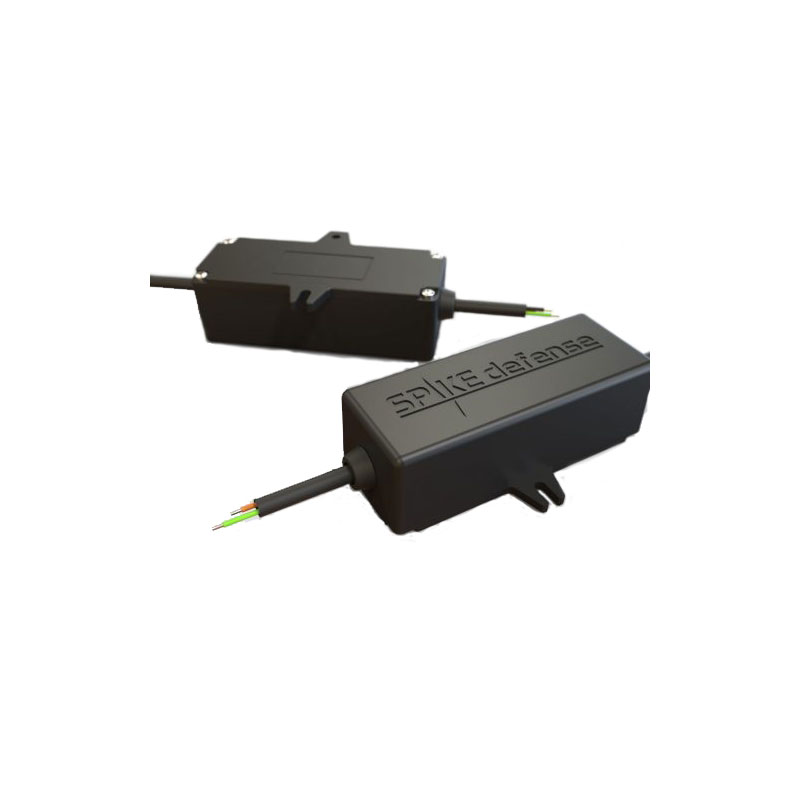

Unit characteristics: | 2 channels Overvoltage Protection |
---|---|
Dimensions: | 80.4 mm x 31.4 mm x 23 mm / 3.16" x 1.24" x 0.9" |
Voltage range: | 9-36VDC |
Voltage protection: | - Transcend voltage: 150V at 2second max, both polarities; - Under-voltage protection lockout: 7.4V; - Under-voltage protection relies: 8.2V; - Over-voltage protection lockout: 44.3V; - Over-voltage protection relies: 41.6V; - Reverse connection protection: 80V, not less; |
Over current protection: | 9A, not less |
Performance: | - Filtration DO-160G, chapter 21, Emission of Radio Frequency Energy: More than 10dB; - Output current, not less than: Steady: 8A per channel; Pulse 1/3: 9A per channel; - Output power, not less than: Steady: 8A at 9-36VDC per channel; Pulse 1/3: 9A at 9-36VDC per channel; - Input power, not more than: Steady: 8A at 9-36VDC per channel; Pulse 1/3: 9A at 9-36VDC per channel; Warm up time: 0.5sec Ambient temperature: -40°C - +85°C Overheat protection: +85°C |

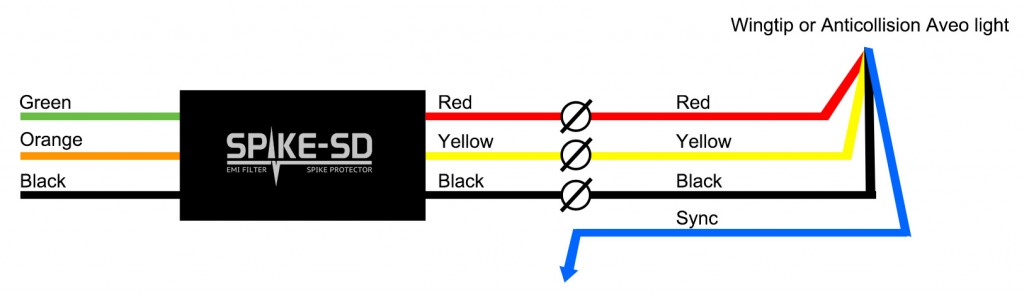

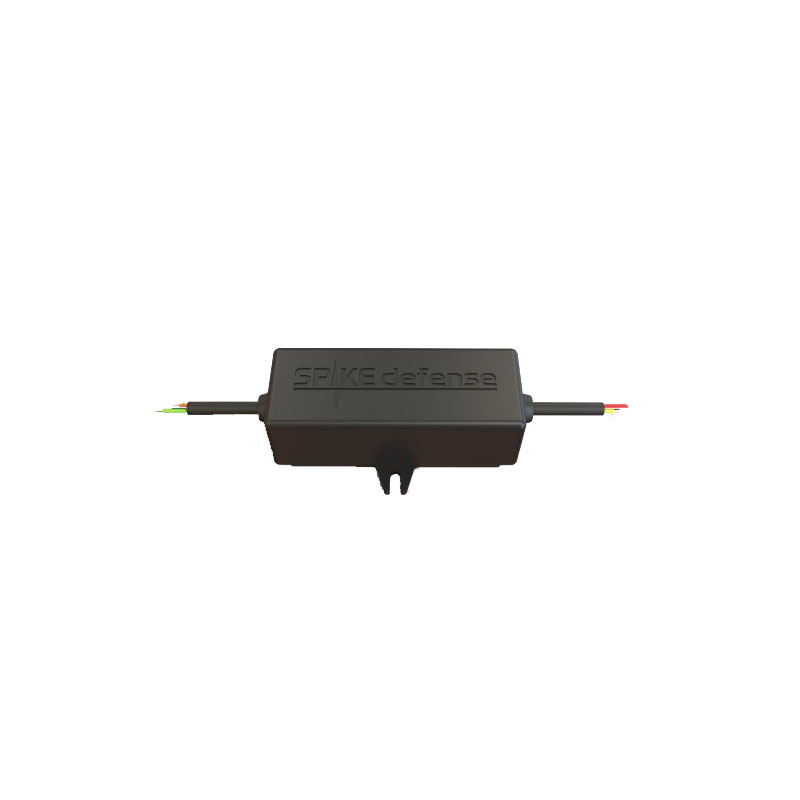

Wiring: | a. wire type: FEP High Temperature teflon wire, 16 AWG b. wire length: min. 10 inch (280mm) Wire color code: 1. Input, power supply side: a. 16AWG Green +9-36V, first channel input b. 16AWG Orange +9-36V, second channel input c. 16AWG Black Common return VRTN to power supply for first and second channel 2. Output, light side: a. 16AWG Red +9-36V, first channel output b. 16AWG Yellow +9-36V, second channel output c. 16AWG Black GND light **Please, do not connect black wires from input and output together. |
