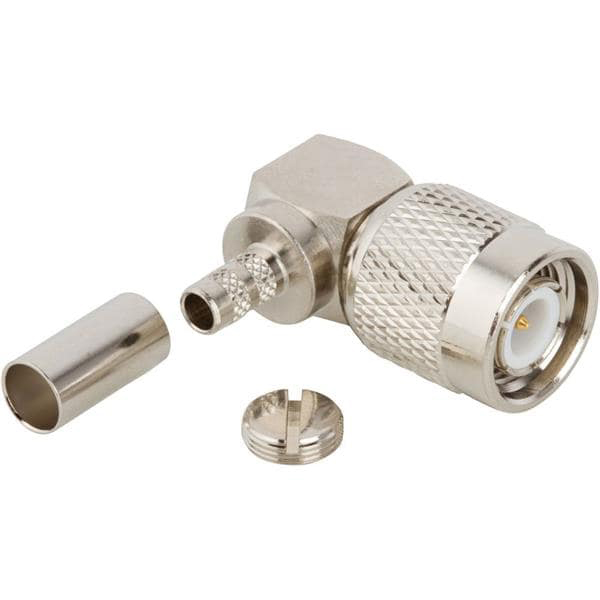

Amph enol TNC 400 Right Angle Male

25 Reviews 2 Answered Questions
$8.50/Each
Quantity
Add to Wishlist
Part# 11-15368
MFR Model# 122430

Overview

RF Connectors / Coaxial Connectors TNC R/A PLUG RG55 223 142 400.

Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Product Category: RF Connectors / Coaxial Connectors
  • Manufacturer: Amphenol
  • RoHS: RoHS Compliant By Exemption Details
  • Product: Connectors
  • RF Series: TNC
  • Gender: Plug
  • Impedance: 50 Ohms
  • Maximum Frequency: 11 GHz
  • Termination Style: Cable - Crimp
  • Orientation: Right Angle
  • Mounting Type: -
  • Cable Type: RG-55, RG-142, RG-223, RG-400
  • Packaging: Bulk
  • Body Finish: Nickel
  • Body Material: Brass
  • Brand: Amphenol RF
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Termination: Solder
  • Coupling Mechanism: Threaded
  • Isolation Type: Not Isolated
  • Mating Cycles: 500
  • Series: TNC
  • Factory Pack Quantity: 1
  • Voltage Rating: 500 V
  • Unit Weight: 0.697013 oz
