Carbon Fiber Tubing

0 Reviews 4 Answered Questions
From $357.95 to $720.00
Main Image
ID of Tube Wall Thickness Length Part No. Price Buy
0.5".10010
03-00171
$458.00
Quantity
0.75".10010
03-00172
$458.00
Quantity
1.00".120"10
03-00173
$357.95
Quantity
1.25".120"10
03-00174
$515.00
Quantity
1.5".120"10
03-00175
$414.95
Quantity
1.75".120"10
03-00176
$565.00
Quantity
2".120"10
03-00177
$464.95
Quantity
2.5".120"10
03-00178
$720.00
Quantity
3".120"10
03-00179
$689.99
Quantity
Subtotal $0.00
Add to Wishlist

Overview

We offer structural tubing and structural torsion tubing, engineered and built to meet your exact specifications and tolerances.

  • Structural Tortion Tubing, in continuous lengths up to 40', is manufactured with the computer-controlled, fully-automated Helical Winding Process.

We offer a broad array of Fiber Options and tubing wall thickness and diameter is determined on a case-by-case basis to suit your application.

Special Order
Sold in 10 ft. lengths only (can cut for UPS shipment).

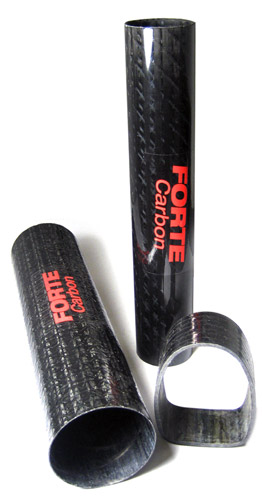

* The image shows two types of finish on this product. The standing tube is sanded and painted with a gloss finish. Add the optional 13-09062 to your cart to have the gloss finish applied to your product.

The tube lying on its side is a rough surface, which will be received when product is purchased.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How do you differentiate between torsion tubing and structural tubing when ordering?

Per the supplier: All of my "standard" tubing that is available off of the website is designed for bending or compression (high axial content). Any torsion tubing has to be specially made with pre-preg and is special order. Please contact sales @ 877-477-7823 for pricing and lead time of special order products.

Q: What is the weight of the 3 inch tube x 10 feet long, part No. 03-00179?

This weighs .79lbs per ft.

Q: What is the weight per foot of 1 carbon fiber tubing?

Per the supplier approx 0.13 lbs per foot.

Q: What is the tensile strength and yield strength of the carbon fiber tube in bending?

Axial modulus: 14 MSI
Ultimate tensile: 140 KSI
Compressive tensile: 80 ksi
Yield: n/a
