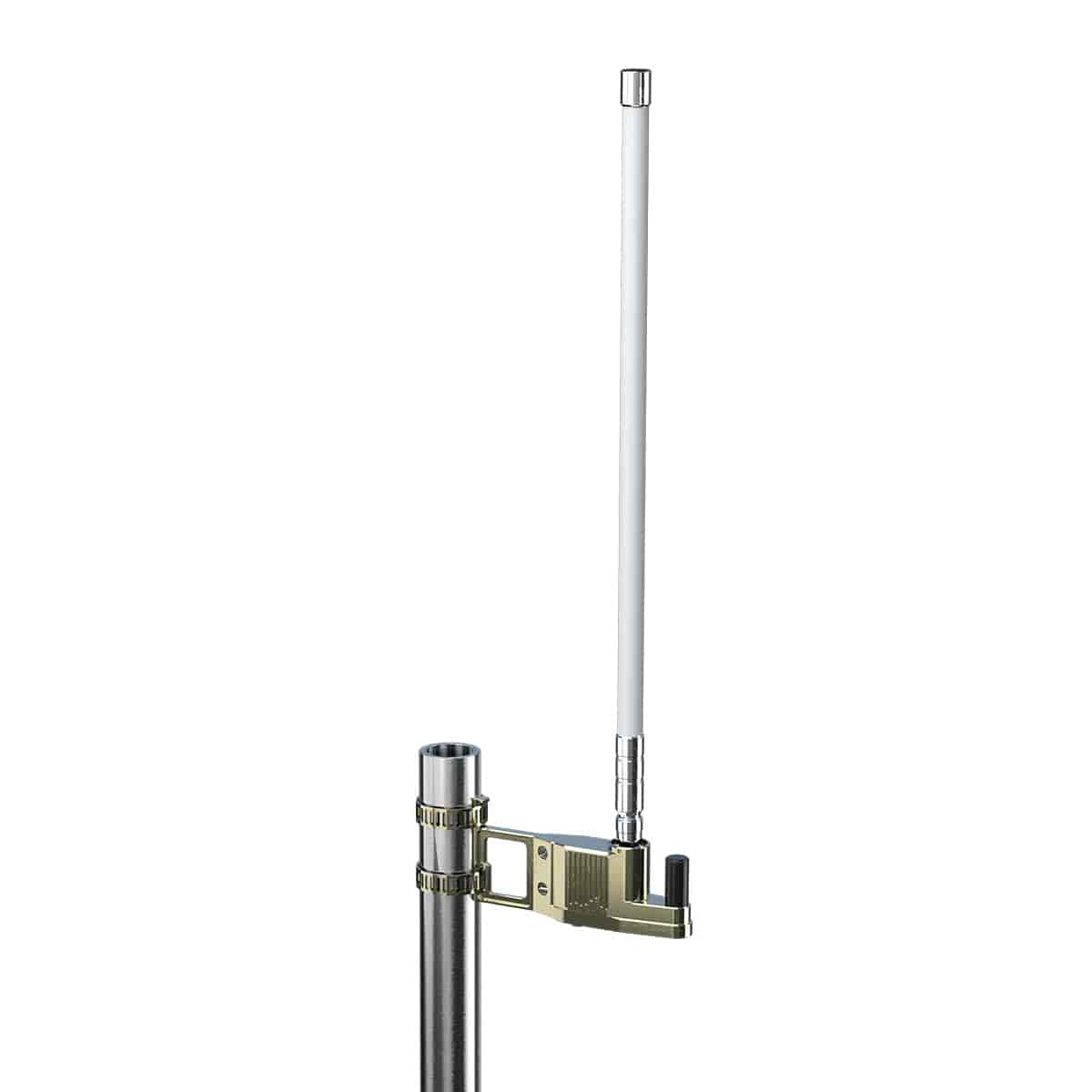

uAvionix Pingstation 3 Weatherproof Ground Station 978/1090 Networkable ADS-B Receiver

0 Reviews 0 Answered Questions
$2900.00/Each
Quantity
Add to Wishlist
Part# 11-19343
MFR Model# UAX-90083-01

Overview

pingStation 3 receives both ADS-B frequencies (978MHz UAT and 1090MHz) simultaneously with a single installation when most competitors are single-frequency. Don’t miss half the picture! pingStation 3 allows you to track ADS-B-equipped aircraft as far as 200+ miles away.
    Easy to deploy
  • Say goodbye to difficult coax cable runs that reduce your reception performance. The all-in-one pingStation 3 includes the receiver, GPS, and antenna in an IP67 weatherproof enclosure, with power and data provided by a single Power-Over-Ethernet (POE) network cable connected right to your LAN. The quick pole-mount clamp design makes installation a snap.
    Your Data, Your Way
  • pingStation 3 provides data in several formats easily integrated into any display or analytical application, including UAS Ground Control Stations, Unmanned Traffic Management (UTM) Solutions, and Flight Information Displays.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • A dual-band receiver powered by the groundbreaking uAvioinix ping™ firmware defined radio. pingStation receives ADS-B equipped aircraft over 200 miles away on both 978MHz (UAT) and 1090ES. As an added benefit the dedicated ping™ ADS-B radio features extremely low power consumption, more dynamic range and much less heat generation when compared with SDR solutions.

Specifications

  • Input Voltage / Power: 44-57V / 500mA Power over Ethernet
  • Size: 4.5” x 7.5” x 14.8”
  • Weight: 425 grams
  • MTL 1090MHz Dynamic Range: -88dBm ; -79 to 0dBm
  • MTL 978MHz Dynamic Range: -93dBm -90 to -3dBm
  • Interface: Ethernet (JSON UDP) / Compressed VRS (Virtual Radar Server)

In The Box

  • pingStation 3
  • Mounting hardware
  • Weatherproof Ethernet Coupler
  • Installation Manual
  • ICD
