Trig Avionics TA10 VHF Com Antenna - Straight

$239.95/Each
Quantity
Add to Wishlist
Part# 11-20272
MFR Model# 02451-00

Overview

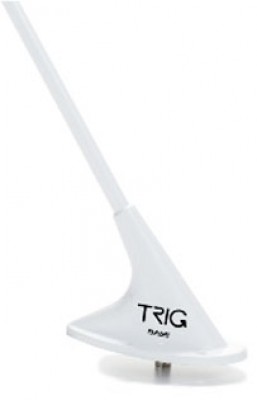

The TA10 is a certified VHF Com antenna, designed to provide the best performance from Trig VHF radios. The TA10 is a ‘straight’ model and typically is located on the upper fuselage of the aircraft surface. With excellent electrical characteristics, the antenna has an efficient aerodynamic design that includes a solid four bolt mounting base. Ideal for use in a wide range of GA types, including high performance aircraft up to 350mph and 50,000 feet. Make your Trig radio installation complete by adding a TA10.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Advanced aerodynamic design – proven with Trig VHF radios
  • Suitable for most GA types, including high performance aircraft (up to 350 mph / 50,000 feet)
  • Certified to FAA TSO C37d and C38d

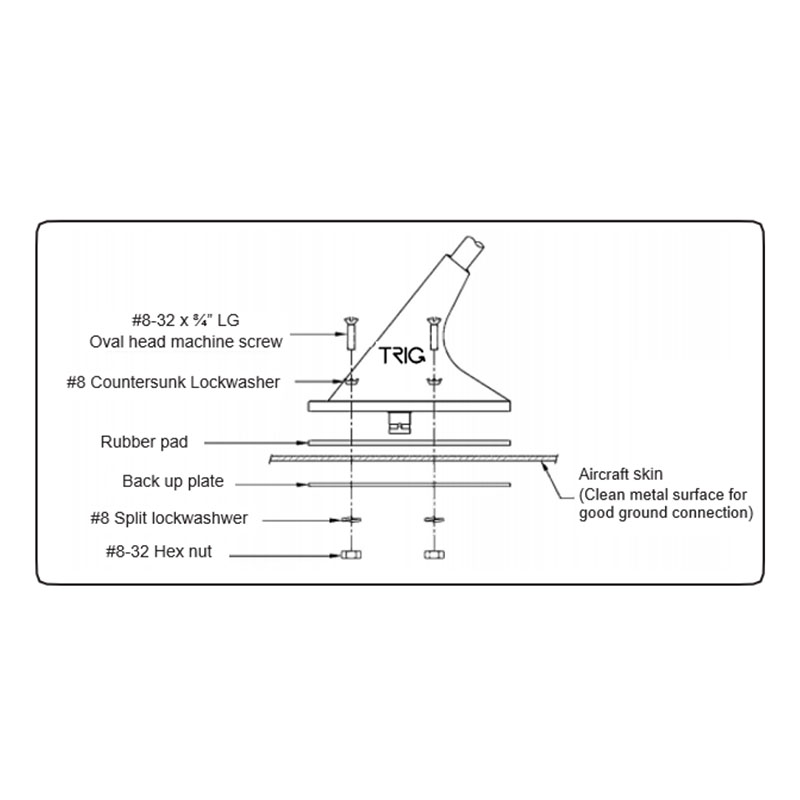

  • Solid four bolt mounting base
  • Complete with installation kit

Specifications

Product Model Type Frequency Impedance VSWR Polarization Pattern Connector RF power Height /Weight
TA10 VHF Com Antenna – ‘straight’ type 118 – 137 MHz 50 Ohms nominal 2.0:1 maximum Vertical Omni-Directional BNC female 30 Watts 523mm / 20.6″ 226g / 8oz
