Comant Glide Slope - CI-193

$398.00/Each
Quantity
Add to Wishlist
Part# 11-05200
MFR Model# CI-193

Overview

Frequencies Covered
329-335 MHz (GS

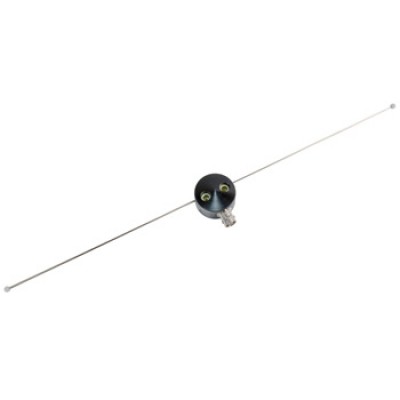

Half wave dipole designed for interior mounting for GS reception. Integral ferrite balun can result in improved performance when propeller modulation is a problem.

Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.

Applications
Internal mount.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 193 GLIDE SLOPE ANTENNA
Electrical
Frequency

329-335 MHz

VSWR
2.5:1 Maximum
Polarization
Horizontal
Radiation Pattern
Dipole
Impedance
50 Ohms
Power

Receive Only

Gain
2.0 dB Nominal
Mechanical
Weight
0.15 lbs Maximum
Height
15 in. Maximum
Material
Derlin Housing/Brass Radiators
Finish
Black /Nickle
Connector
BNC
Environmental
Temperature
-55ºC to + 55ºC
Connector
RTCA Environmental
DO-160
FAA TSO
C34c
RTCA MOPS
DO-192
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: For the CI-193 glideslope antenna, Do you have the part number for the 2 mounting screws?

Per the manufacturer, the Comant Glide Slope Antenna does not include mounting screws and it is up to the installer to choose the correct type of screws for their installation.
