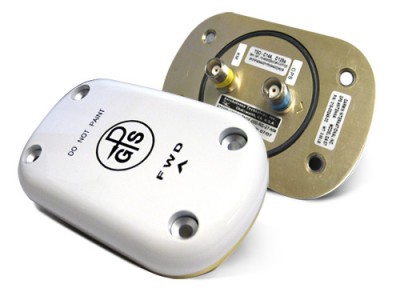

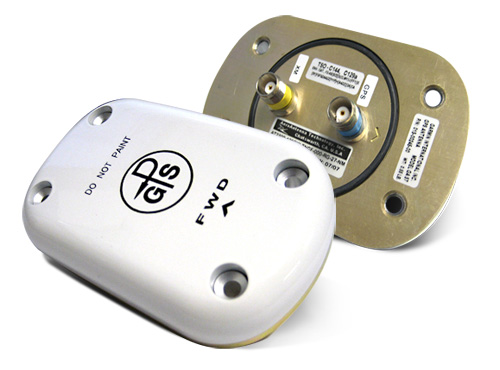

Garmin GA 37 TSO'd WAAS GPS / Siriusxm Antenna

0 Reviews 12 Answered Questions
$675.00/Each
Quantity
Add to Wishlist
Part# 11-05824
MFR Model# 013-00245-00

Overview

This external GPS antenna is suitable for all Garmin WAAS panel-mount GPS systems with an ARINC 743 footprint. It also serves as a SiriusXM antenna. It provides excellent reception and attaches through the fuselage via screw mount.

Reference the G3X™ installation manual for detailed installation instructions. Antenna connections are dual female TNC out.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What Garmin portable and panel mount GPS units can this be used on?

The Garmin GA 37 antenna is used for the Garmin GTN 650 & 750 GPS/NAV/COM units. This cannot be used for portable GPS units.

Q: Can two GPS receivers share the Garmin GA 37 antenna?

Per Garmin, you can not use two GPS Receivers into the GA 37 or any one GPS WAAS antenna.

Q: Can this aerial be used on Garmin 430W and 530W units ?

Per the manufacturer: Yes this unit, part number 11-05824, is compatible with the 430/530 units.

Q: If I have a GDL 69 (not A). Could I get this antenna for my GNS 530 WAAS upgrade and be able to receive XM radio?

Per Garmin: Yes, the GA 37 (part number 11-05824) will allow you to listen to XM radio through your GNS 530.

Q: Can the Garmin GA 37 antenna receive data for the Garmin 496 both GPS and XM?

No, the GA 37 is not compatible with the Garmin 496. You will need the GA 26C GPS and GXM 42 XM antenna's.

Q: Which WAAS GPS antenna do I need for installing the GTX 345? The GA 35 or GA 37?

The 345 option with GPS comes with the GA 35 WAAS GPS Antenna.

Q: What applications is this Garmin GA 37 antenna used for?

This is meant for use for a unit requiring a waas gps antenna and for an additional unit needing a xm capable antenna for siriusxm subscriptions.

Q: Assuming proper connectors on each end, is the XM portion of this antenna compatible with the GDL52s XM receiver?

The GA 37 XM portion of this antenna can be used with the GDL52.

Q: Can I use this GA 37 antenna with GNS 530 (a non WAAS unit)?

Per the installation manual this antenna cannot be used with the GNS530. The manual recommends 11-18756.

Q: Q: Will this Garmin GA 37 antenna work with a GNS 480 WAAS?

Yes, this would work for the WAAS required signal.
