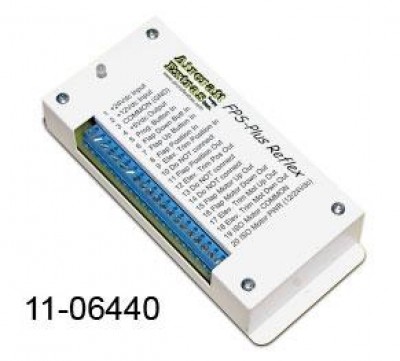

Fps-Plus Reflex Flap Positioning System

$229.00/Each
Quantity
Add to Wishlist
Part# 11-06440
MFR Model# FPS-PLUS-RELEX

Overview

What is the FPS-Plus Reflex?

The FPS-Plus Reflex has all of the same features as our standard FPS-Plus.The only difference is the way it functions on aircraft that utilize a Reflexed Flap Position.

FLAP REFLEX POSITION DEFINITION:
This is a flap position (typically up to a minus ten degrees) that is maintained in cruise flight. The zero degree position is usually designated for aircraft take-off and climb.


FPS-Plus Reflex Operation

Again, all features of this system are exactly the same as our FPS-Plus. The only exception is, when you press the Flap Up Button for more than a second, it returns the flaps to the zero degree position, not "full up". This is an advantage when initiating a "go-around" and "touch and goes". It is also an advantage when your flaps are in any down position, and you want to return the flaps to the "take-off" position. Other manufacturers flap positioning systems return the flaps to the cruise position, which is undesirable for aircraft such as the RV-10.

NOTE:
You can program as many flap stop positions and put them where you desire. The first position down from the "full up" position, does not have to be located at zero degree point as in our example. It can be any position. In any case, the model FPS-Plus Reflex will return the flaps to the first position down from the "full up" position when the flap up button is pressed for more than one second.

Touch-N-Go Operation
As you come in for a landing with full flaps, you land and then prepare for take-off again while rolling. You hold in the "Flap Up Button" in for longer than 1 second. This commands the flap positioning system to start moving to the take-off or climb flap position (zero degrees for the RV-10). While the flaps are retracting, go to full throttle, punch in the carb. heat, and take-off. After climb, level off. Momentarily press the "Flap Up Button" again. The flaps will go to the full up position (the flap reflex position for cruise flight).

Pre-Flight and Ground operations
Pilots that extend the flaps for pre-flight inspection or for ease of loading can return the flaps to the zero degree position automatically with one touch of the flap switch. It's no longer necessary to monitor the flap position as they are retracting or to retract them in increments. This makes flap retraction simple and easy, as well as providing the pilot with additional assurance that the flaps won't "accidentally" be in the reflexed position for take off, a function not offered by other flap control systems.

Download FPS Plus PDF

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • FLAP REFLEX POSITION FOR CRUISE FLIGHT
  • FULL AUTOMATIC FLAP POSITIONING, with or without "AUTOMATIC ELEVATOR TRIM"
  • STEP & PROPORTIONAL MODES
  • DESIGNED for +12V & +24V SYSTEMS
  • COMPATIBLE WITH MOST MOTORS & INDICATORS
  • Set-Up is FULLY user PROGRAMMABLE!
  • ONE BUTTON PROGRAMMING
  • NO LIMIT SWITCHES TO INSTALL

Reflex Positions

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How do I put the Flap at -10 degrees in cruise mode?

The FPS-Plus is automatically configured with -10 degrees for cruise.

Q: Can it be programmed for less than 10 degrees?

Per the supplier: Yes it can.
