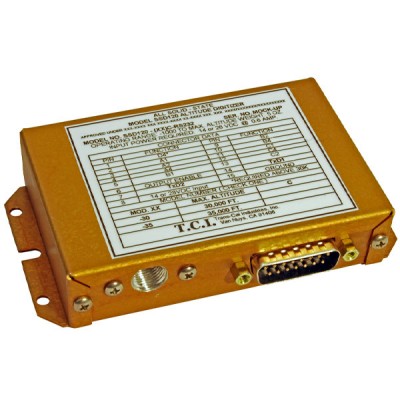

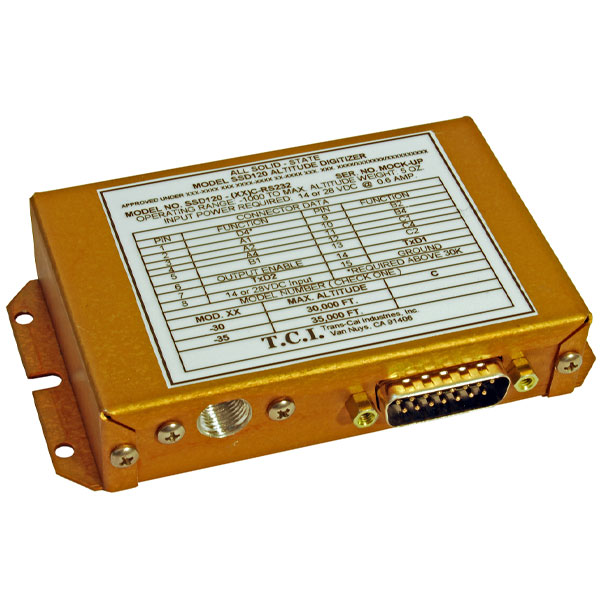

Trans-Cal Altitude Encoder Model Ssd120-35C-Rs232 FAA TSO-C88

12 Reviews 20 Answered Questions
$265.00/Each
Quantity
Add to Wishlist
Part# 11-15366
MFR Model# SSD120-35C-RS232

Overview

The smallest, lightest, and lowest power consumption Altitude Digitizer on the market.

The SSD120-35C-RS232 is a solid-state Altitude Encoder that is designed to provide a rugged and reliable altitude digitizer for applications where size, weight and economy are critical. Incorporating one ICAO gray code port, as well as two RS232 serial altitude data outputs, this encoder is a simple and robust addition to any avionics installation requiring accurate pressure altitude information for multiple aircraft systems.

The two asynchronous RS232 outputs provide altitude data on the serial data protocol which is commonly used to provide pressure altitude data to ADS-B, GPS, Auto-Pilots, Transponders and other navigation devices. Six (6) serial data protocols are available. The data protocol is selected through internal shunts or via software set-up. Resolution of the serial altitude data may be set to 100 feet or 10 feet through internal shunts.

Operating Pressure Altitude Range: -1000 to +35,000 feet

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Featuring the best warranty in the business: 42-month manufacturer direct replacement. If your Trans-Cal encoder experiences a warranty-covered failure, it'll be replaced with a brand new unit with a new 42-month warranty.
  • Average MTBF: 8 years.

Specifications

  • 1/8-27NPT Static Port Inlet
  • One ICAO pressure altitude gray code output
  • Two RS232 serial altitude data outputs
  • Operating Pressure Altitude Range: -1000 to +35,000 feet
  • Comes standard with 10 foot serial resolution
  • Operating Temperature Range: -20ºC to +70ºC
  • Operating Voltage: +10 to +33Vdc
  • Operating Current: +12Vdc @220mA / +28Vdc @270mA
  • FAA TSO-C88a and ETSO-C88a Approved
  • Tested and conforming to MIL-STD-704E and RTCA DO-160E
  • Power and data I/O lines provide on industry standard D-Subminiature Connector
  • Weight: 4.3 oz.

Documents

In The Box

  • SSD120-35C-RS232 Unit
  • Quick Release Mounting Tray
  • Mating Electrical Connector and Back Shell
  • 1/8-27NPT to Tube Fitting and Plug
  • Installation Manual
