Home / Avionics / COM/Panel Transceivers / Dynon /Dynon SV-COM-PANEL Skyview Com Panel
Main Image

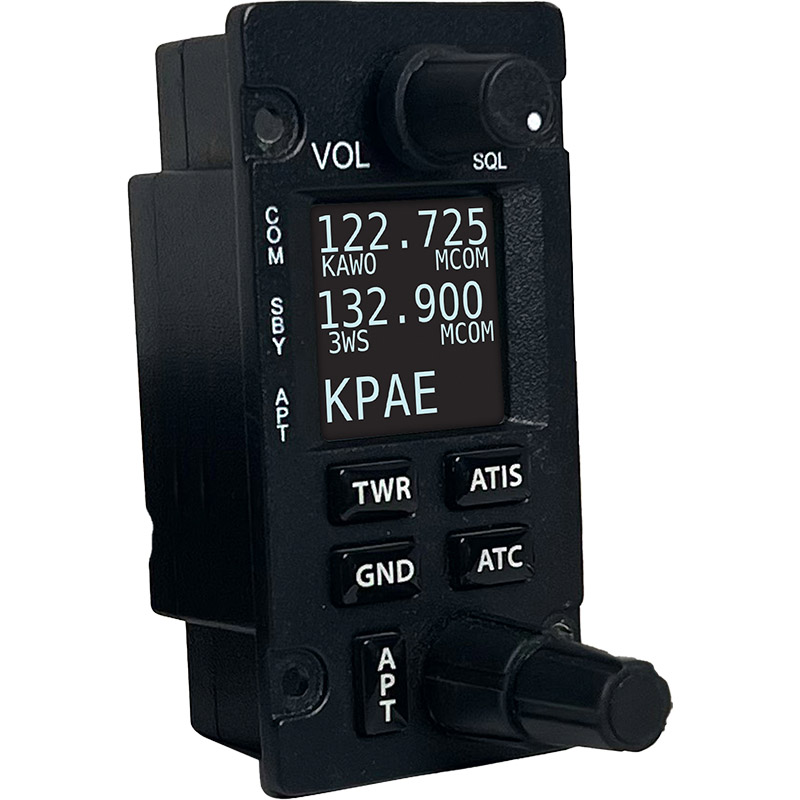

Dynon SV-COM-PANEL Skyview Com Panel

0 Reviews 0 Answered Questions
Panel Orientation
Vertical - OLED ScreenHorizontal - OLED Screen
Quantity
Add to Wishlist View More In This Series →

Overview

Note: Must be paired with T25/T8 Transceiver

The SkyView COM Radio will change the way you use an aircraft radio. By integrating deeply with your Dynon SkyView system, the SkyView COM Radio tunes frequencies by airport and station type - rather than by spinning in a number - at the touch of a button.

Dual watch allows you to listen for transmissions on both your active and standby frequencies simultaneously, with the active taking priority at all times. Use dual watch to monitor an alternate frequency in busy airspace or listen to ATIS without missing anything on the active.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Tune frequencies by airport and station type at the touch of a button
  • Send frequencies directly from SkyView
  • GPS-based reverse lookup of airport and station type for manually entered frequencies
  • Vertical and horizontal versions
  • Monitor your standby frequency with dual watch
  • Fully backlit, auto-dimming controls
  • One-touch flip-flop with remote trigger ability
  • Transmit indicator
  • Receive indicator with active/standby differentiation
  • Stuck mic indicator with transmit time-out

    • Specifications

    Control Panels:
    3.53” (89.7mm) x 1.80” (45.7mm) x 1.27” (32.4mm), available in vertical and horizontal versions
    SV-COM-X25 Transceiver Module:
    6.3” (160mm)L x 2.5” (66mm)W x 1.9” (48mm)H
    Weight:
    Control Panel: 5.6 oz (159 g)
    SV-COM-X25 Transceiver Module: 0.77lbs (350 g)
    Power Input:
    10-30 VDC
    Transmit Power:
    6 Watts
    Antenna Connection:
    TNC

    Frequencies

    • SV-COM-X25: 118.000 to 136.975 MHz, 25 kHz Spacing

    In The Box

    • 2 x Connector Kit: Female, D-sub 25-pin, P/N 100831-001
